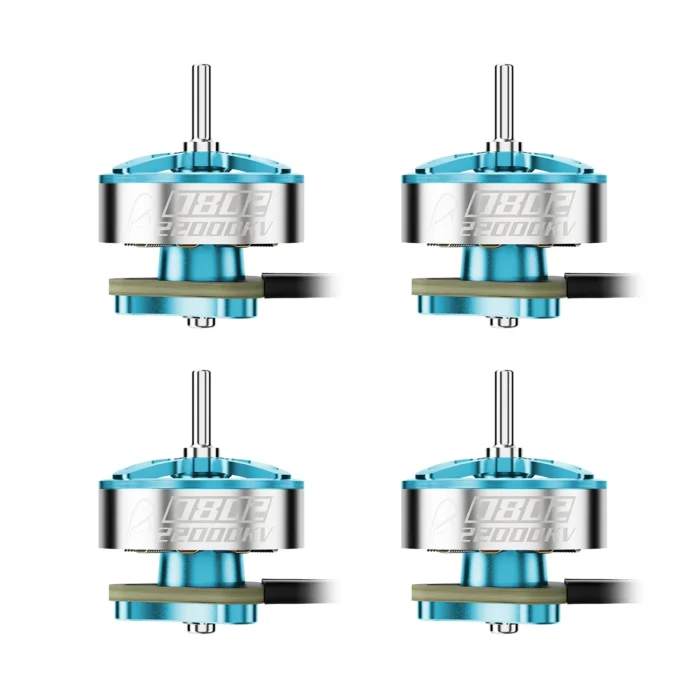

BETAFPV 0802 Brushless Motor 2026 | Freestyle 22000KV Blue (4PCS)

The 0802 Brushless Motors (2026) feature a revolutionary 0.10mm stator core for more efficient flight and extended power. Available in three precision-tuned versions for Air75 II—Champion (28000KV), Racing (25000KV), and Freestyle (22000KV)—each is optimized with specific magnetic and winding designs. Built with upgraded materials for crash resilience, this is the definitive motor for pilots who accept no compromise.

Bullet Points

• Industry-First 0.10mm Stator Core: Maximizes efficiency and reduces heat by minimizing magnetic losses, delivering a proven 0.1-0.2g/W improvement.
• Three Precision-Tuned Versions: Tailored for the Air75 II whoop with unique KV ratings and designs.

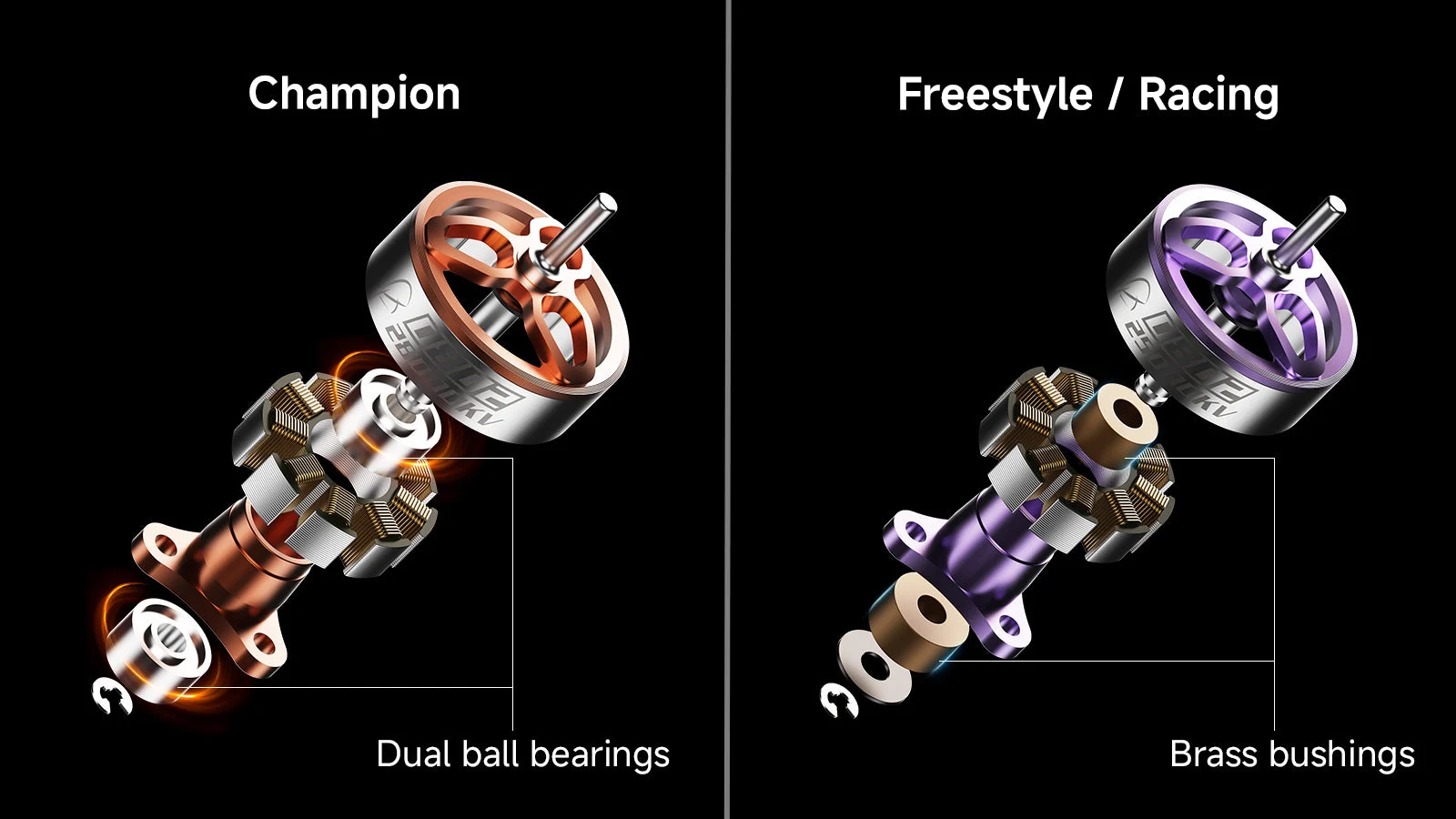

  • Champion (28000KV): Combines maximum power and responsiveness with durable dual-ball bearings for professional racing.

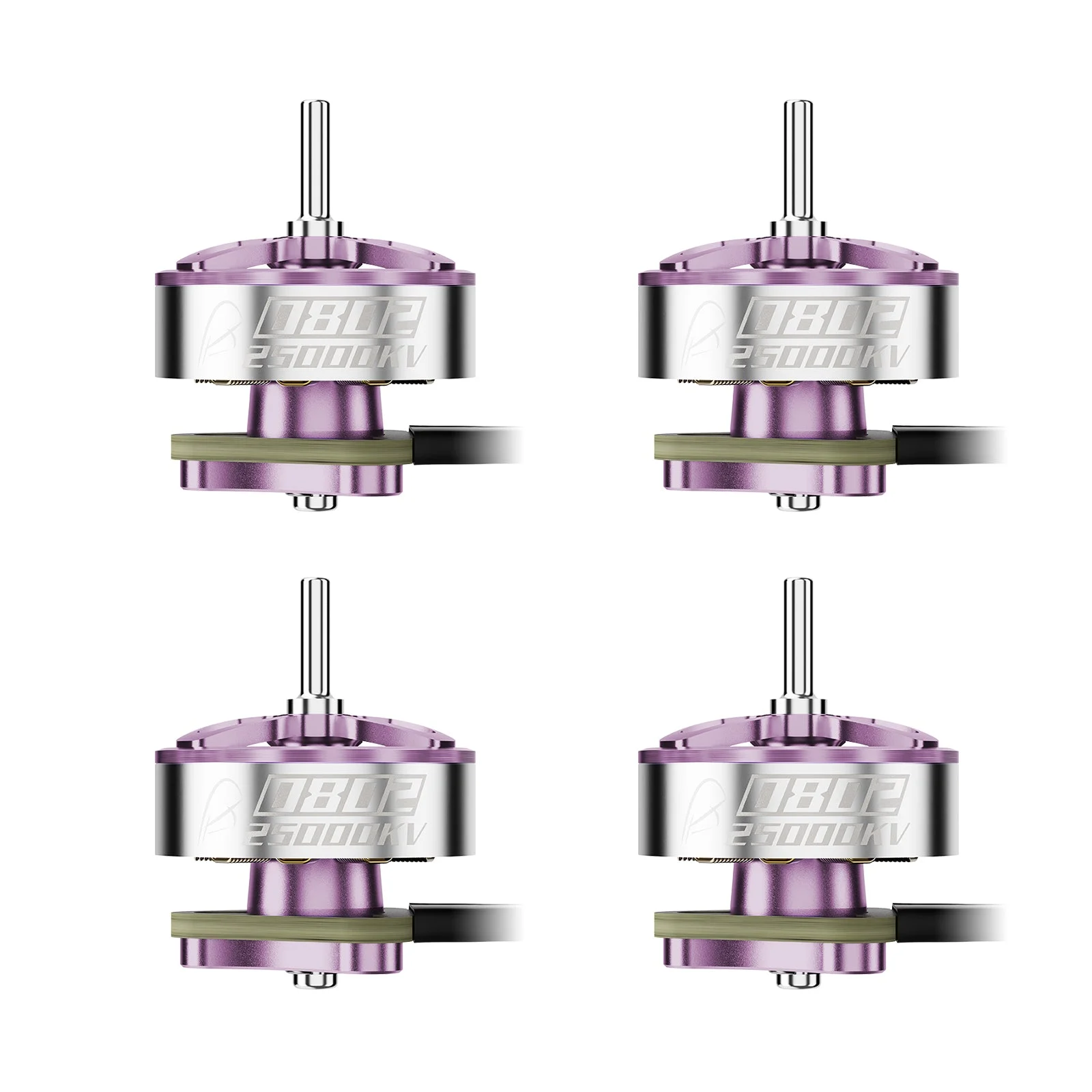

  • Racing (25000KV): Engineered for high RPM and instant response on technical race courses.
  • Freestyle (22000KV): Optimized for smooth, efficient flying with superior low-throttle torque.
• Enhanced Crash Durability: Built with an upgraded rotor housing and shaft design to withstand hard impacts and extend motor life.

Specifications

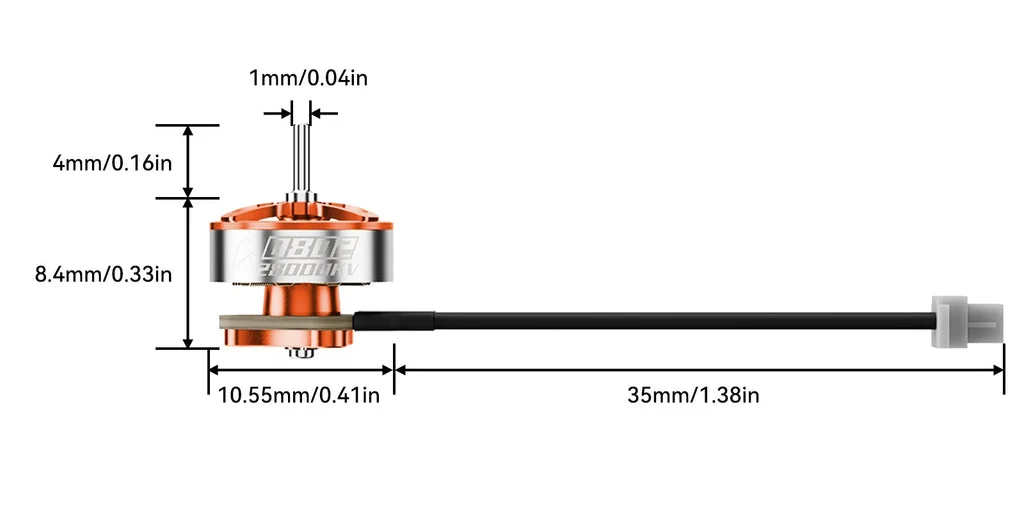

Dimensions

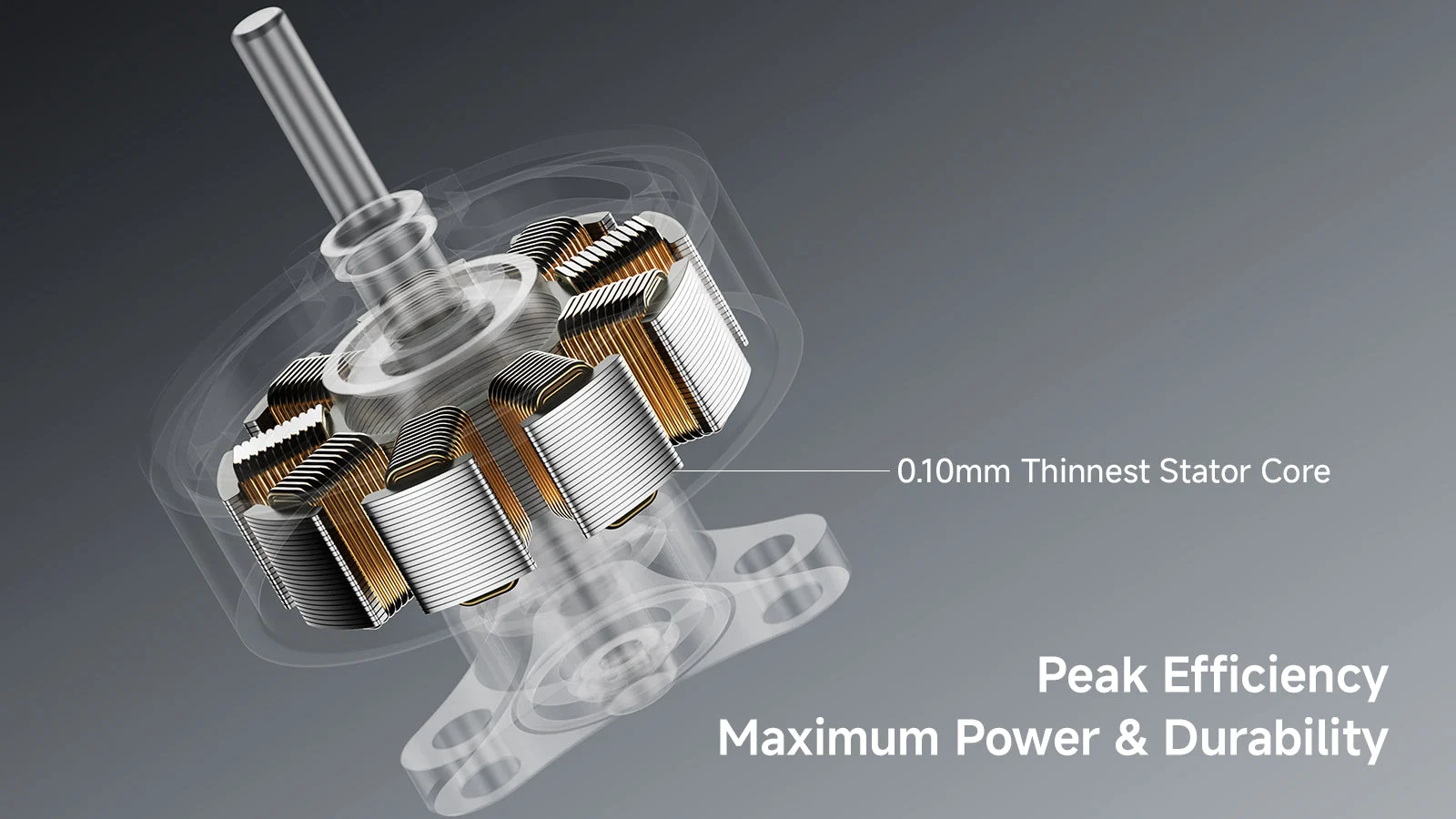

Industry-First 0.10mm Stator Core

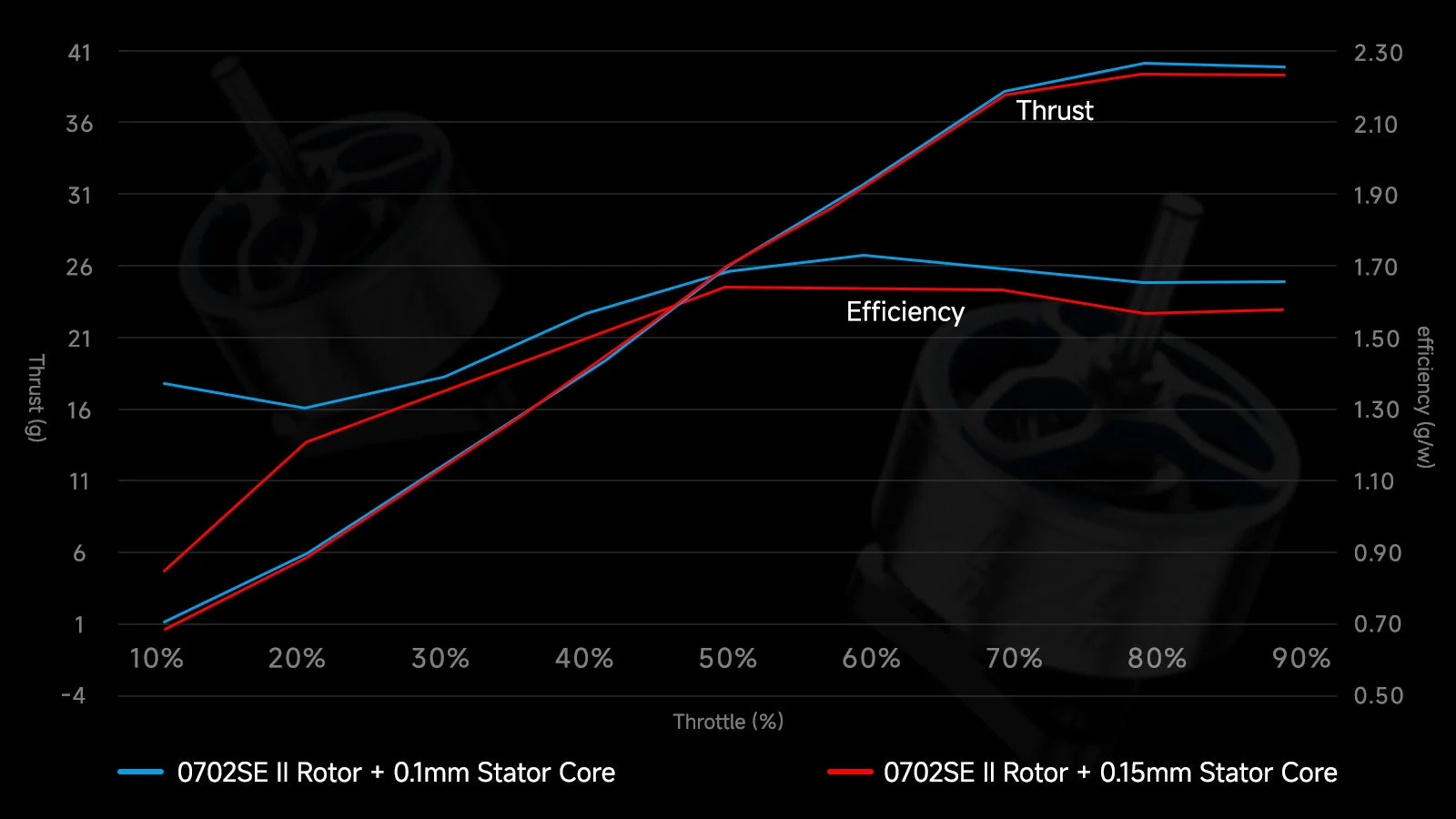

BETAFPV pioneers a breakthrough in efficiency with the industry’s first 0.10mm stator core.

This ultra-thin design minimizes magnetic losses, dramatically improving energy conversion and reducing heat generation. Proven in testing, 0802 Brushless Motors (2026) deliver a significant efficiency gain of 0.1-0.2g/W compared to 0802 motors with a 0.15mm core.

Champion/Racing/Freestyle, Precision-Tuned

Designed exclusively for the Air75 II whoop, three distinct versions are precision-engineered to meet specific performance demands. Each features unique KV ratings, magnetic circuit designs, and winding processes for optimized power delivery. The Freestyle (22000KV) prioritizes smooth control with superior low-throttle torque for fluid, cinematic flying. The Racing (25000KV) delivers higher RPMs and razor-sharp response for agility on technical race courses. At the pinnacle, the Champion (28000KV) combines maximum power and instant throttle response with durable dual-ball bearings, engineered for dominant, professional-grade racing.

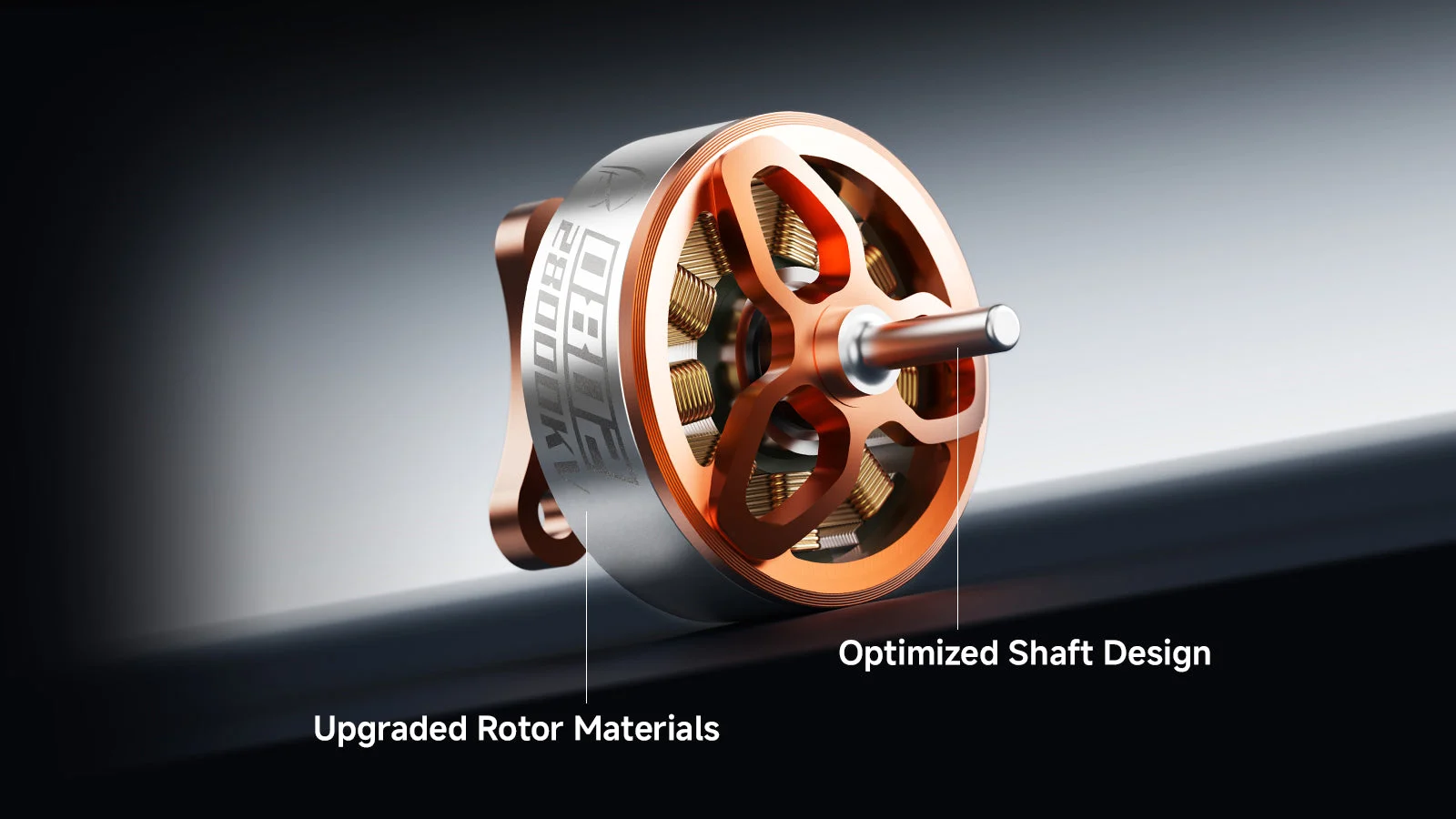

Enhanced Crash Durability

Engineered for resilience, the 0802 Brushless Motors (2026) feature an upgraded rotor housing material and a reinforced shaft design. This construction is built to withstand harder impacts during flight, significantly reducing the likelihood of damage from crashes.

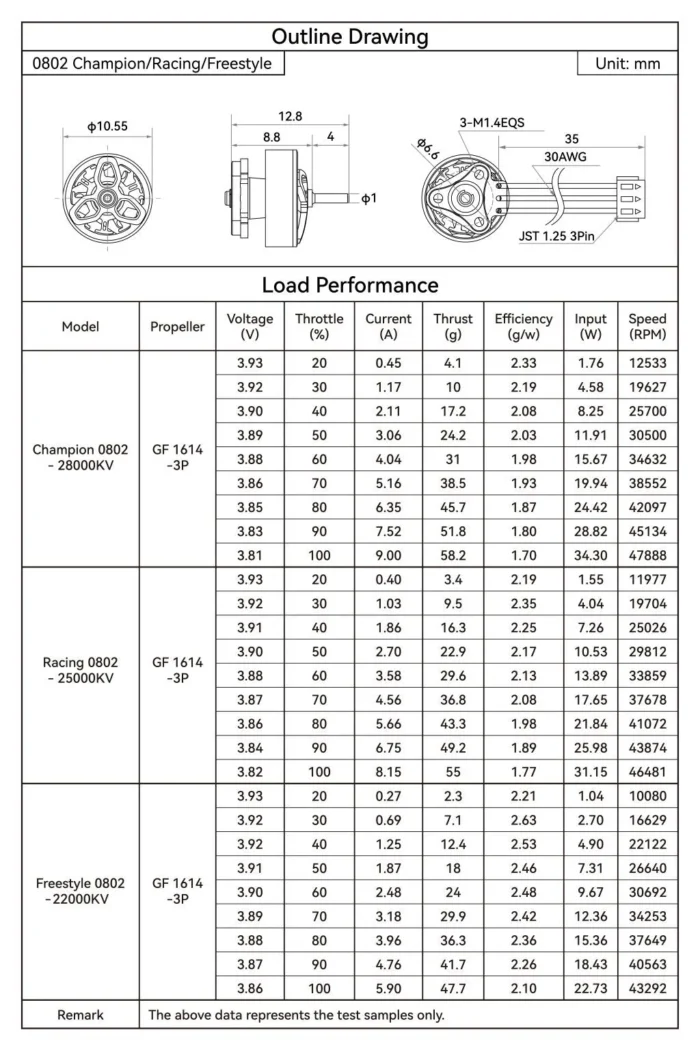

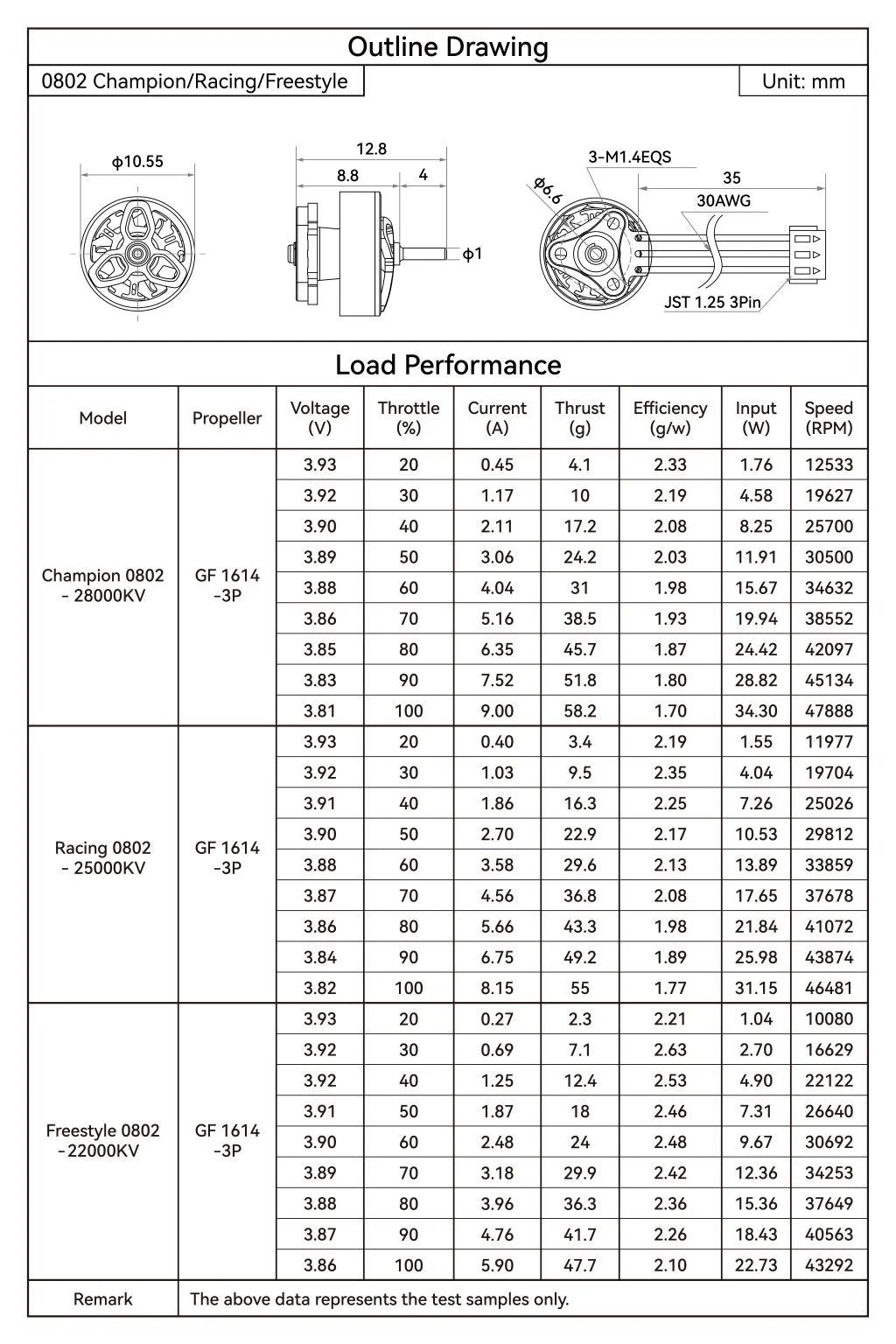

Load performance of the 0802 Brushless Motors (2026):

Recommended Parts

• Propellers: GF 1614 3-B Props
• Frame: Air75 II Frame, Meteor65 Pro Frame
• FC: Matrix 1S 5IN1 II
• Battery: LAVA II 1S 480mAh/580mAh Batt

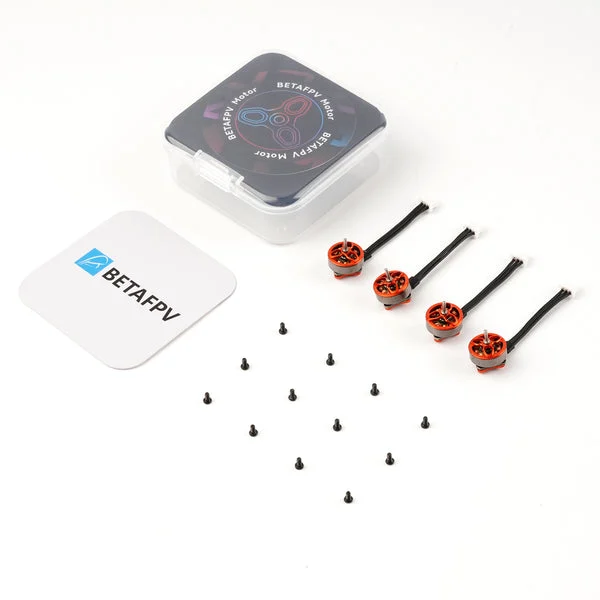

Package

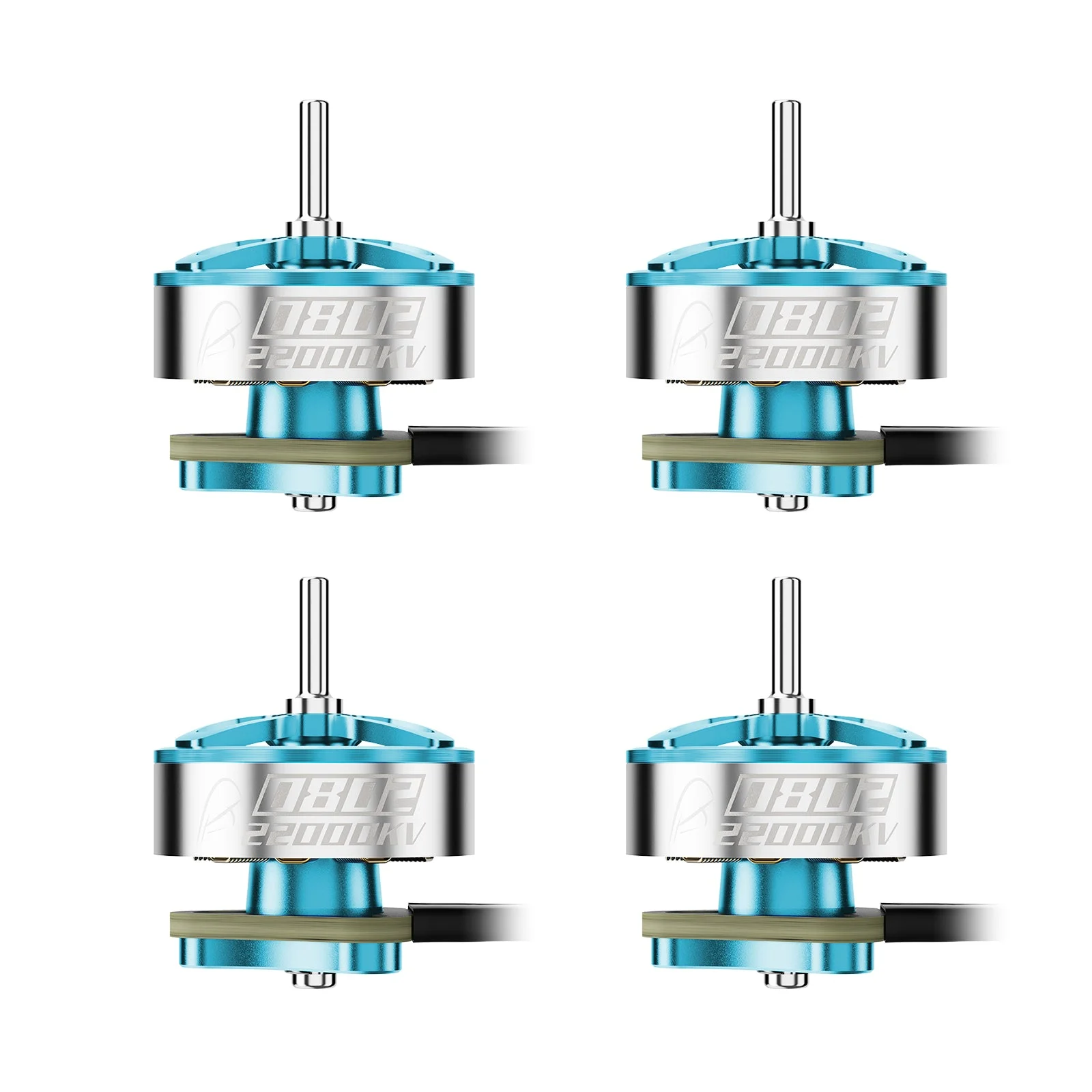

• 4 * 0802 Brushless Motors (2026) | Champion/Racing/Freestyle
• 12 * M1.4*3 screws
