Features:
Compatible with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3.
Works with DJI FPV Remote Controller 2 or 3.
Flagship FHD FPV Digital Video Broadcast
155° Ultra-Wide Visual Field (FOV)
15 ms Low Lag, 15 km Distance
4K/120fps Video Capture
1/1.3-inch CMOS Sensor
1080p at 100fps Real-Time Display
32g Frame
Elevated Levels in Transmission, Greater Liberty in Flight
The DJI O4 Air Unit Series comes with the DJI O4 video transmission system, delivering ultra-low latency for enhanced control responsiveness. Combined with the dual-antenna configuration of the DJI O4 Air Unit Pro, the maximum transmission range can extend to 15 kilometers. This system has the ability to automatically choose the most stable frequency. Whether flying above mountains and rivers or moving through indoor areas, execute with confidence and accuracy.
Clear and Smooth, Visually Impressive
The DJI O4 Air Unit Series can capture 4K/60fps video. The video transmission system employs H.265 video encoding, facilitating high-frame-rate transmission at 1080p/100fps, guaranteeing clear and smooth real-time visuals. Regardless of how quickly you soar, the camera perspective stays in sync.
New Racing Mode: Boundless Speed, Endless Enjoyment
The DJI O4 Air Unit Series presents a new Racing mode, achieving video transmission latency as low as 15 ms with the O4 Air Unit Pro and 20 ms with the O4 Air Unit. It accommodates as many as eight aircraft racing at the same time, offering you an exciting, fast-paced adventure through the air.
Enhanced Imaging: Cinematic Treasures at Your Command
The DJI O4 Air Unit is equipped with a 1/2-inch image sensor that can record 4K/60fps video. The DJI O4 Air Unit Pro advances with a 1/1.3-inch image sensor, enabling 4K/120fps video capture. There’s no requirement for an external action camera to capture ultra-wide-angle, high-definition videos. Producing breathtaking visuals has never been easier.
Even in Bright Light, Work With Assurance
The DJI O4 Air Unit Pro Camera Module is compatible with the DJI Avata 2 ND Filter Set (ND8/16/32). Even in well-lit situations, it guarantees balanced exposure and authentic colors. This enables you to adjust light intake and shutter speed flexibly, effortlessly creating natural motion blur and enhancing the dynamism and impact of your footage.
Compatible With Canvas Mode: Your Flights, Your Style
Maintain complete control over what appears on your display. The DJI O4 Air Unit Series is compatible with Canvas Mode and Betaflight OSD configurations. You have the ability to personalize the real-time information and arrangement shown on your goggles screen, ensuring that flight data is easily visible, thereby improving your control accuracy.
Streamlined Structure, Seamless Adjustment
The DJI O4 Air Unit Series features a lightweight and compact design with broad compatibility. In particular, the DJI O4 Air Unit is compatible with drone frames measuring 2 inches or less, allowing for versatile assembly to accommodate different creative flying situations. Feel the excitement of flight while effortlessly recording high-quality videos.
Here are the specifications:
DJI O4 AIR UNIT PROFESSIONAL
Mass:
Air Unit (excluding camera module): About. 15.6 grams
Air Unit (includes camera module): About. 32 grams
Antenna: Around. 2.1 grams per piece

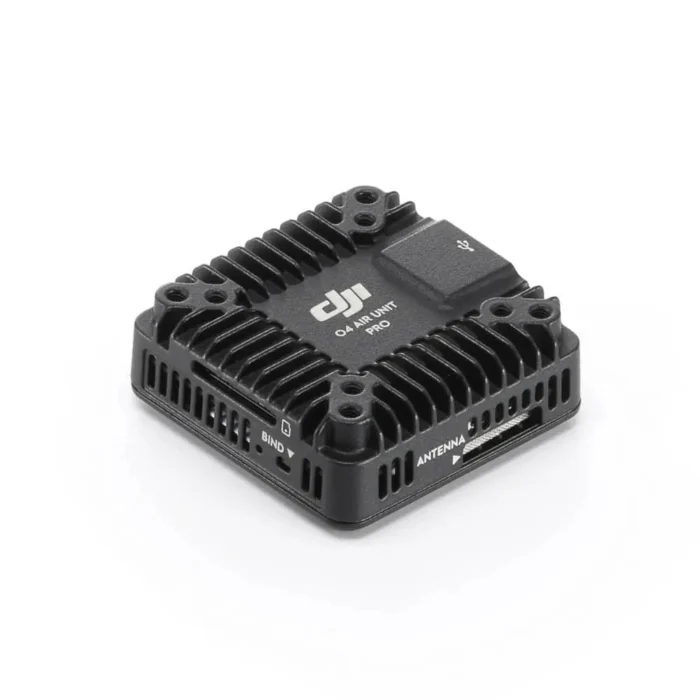

Measurements:
Modulo de Transmisión: 33.5 × 33.5 × 13 mm (L × A × A)
Camera Component: 25.55 × 20 × 23.30 mm (Length × Width × Height)
Coaxial Cable: 140 millimeters
3-in-1 Cable: 100 mm
Antenna: 110 millimeters
VTX Installation Configuration: 20×20/25.5×25.5mm
VIDEO STREAMING
Operating Frequency:
5.170-5.250 GHz
5.725-5.850 gigahertz
Caution: The operating frequency differs by location. Adhere to regional laws.
Transmitter Output Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<33 dBm (FCC)
<14 dBm (CE)
<30 dBm (SRRC)
Minimal Delay:
DJI Goggles 3 in Racing Mode: 15 ms (1080p/100fps)
DJI Goggles N3 in Racing Mode: 19 ms (1080p/100fps)
DJI Goggles 2 or Goggles Integra: Under 30 ms (1080p/100fps)
Note: Latency measurements were conducted in an outdoor setting free from interference.
Maximum Range for Video Transmission:
DJI Goggles 3/DJI Goggles N3:
15 kilometers (FCC)
8 kilometers (CE)
8 kilometers (SRRC)
Note: The transmission range differs based on flight duration and surroundings.
Live View Quality: 1080P at 30/48/50/60/100 fps
Communication Bandwidth: Maximum 60 MHz
Antenna: Two antennas, 2T2R
Ways:
Offers automatic and manual modes
DJI Goggles 3/N3:
60 MHz: 1 frequency channel
40 MHz: un canal
20 MHz: trois canaux
10 MHz: three channels
DJI Goggles 2/Integra:
40 MHz: one channel
20 MHz: three channels
10 MHz: three channels
Información de Canales:
FCC/SRRC/CE:
60 MHz/40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Canal 1: 5768.5 MHz
Channel 2: 5789.5 megahertz
Canal 3: 5814.5 MHz
CAMERA
Image Sensor: CMOS Sensor of 1/1.3 inches
Sure! Please provide the text you would like me to paraphrase.
Campo de visión: 155°
Focal Length Equivalent: 12 mm
Aperture: f/2.8
Focal range: 0.6 m to ∞
ISO Range:
100-25600 (Automático)
100-25600 (Manual)
Video Clarity:
4K (4:3): 3840 x 2880 at 30/48/50/60 frames per second
4K (16:9): 3840 x 2160@30/48/50/60/100/120 frames per second
2.7K (4:3): 2888 x 2016 at 30/48/50/60 frames per second
2.7K (16:9): 2688 x 1512@30/48/50/60/100/120 frames per second
1080P (4:3): 1440 x 1080@30/48/50/60/100/120 frames per second
1080P (16:9): 1920 x 1080@30/48/50/60/100/120 fps
Formato de video: MP4
Maksymalny bitrate wideo: 130 Mbps
Hue Setting:
Standard Mode
D-Log M
Modos de FOV de la cámara:
Standard
Broad-Angle
Ultra Wide-Angle
Electronic Image Stabilization (EIS):
RockSteady 3.0+
Stabilization disabled (compatible with Gyroflow)
Please be aware that RockSteady exclusively supports standard angles.
EQUIPMENT
Input Voltage: 7.4 to 26.4 V
Operating Range: -10°C to 40°C
STORAGE
Integrated Storage: 4GB
Compatible SD Cards: microSD (maximum capacity of 512 GB)
Suggested microSD Cards:
Lexar Pro 1066x (64GB, 128GB, 256GB, 512GB)
Kingston Canvas Go! Plus (64GB, 128GB, 256GB, 512GB)
HARMONY
Compatible Flight Controller System: Betaflight 4.3.0 and above
Compatible DJI Goggles and Remote Controllers:
DJI Goggles 3 alongside DJI FPV Remote Controller 3
DJI Goggles N3 combined with DJI FPV Remote Controller 3
DJI Goggles 2 / Goggles Integra with DJI FPV Remote Controller 2
Attention: The flight control firmware is required to be compatible with the SBUS protocol to operate the DJI FPV Remote Controller.
DJI O4 PRO AERIAL DEVICE
Approximate weight: 2.1 grams
Size: 110 mm

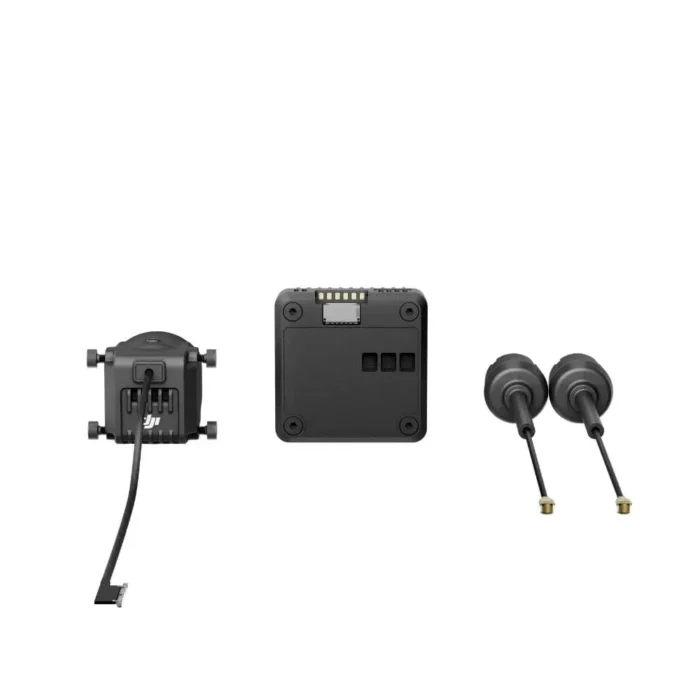

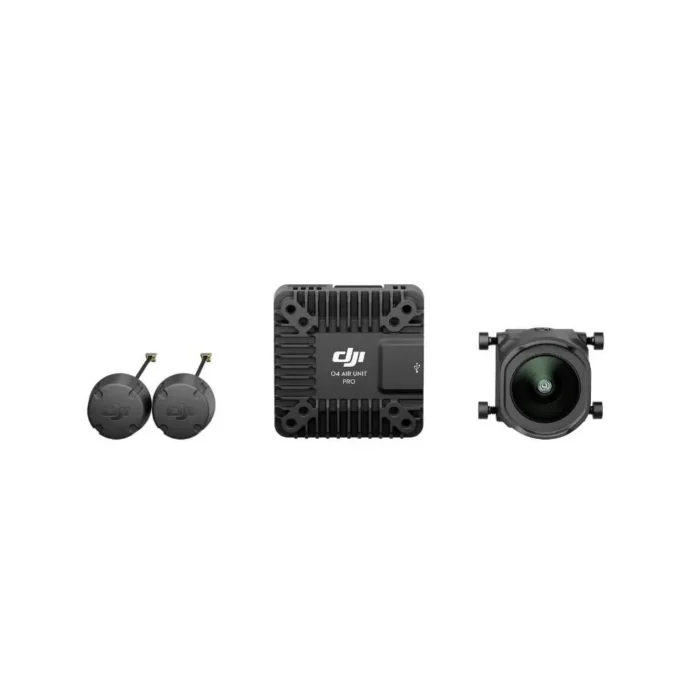

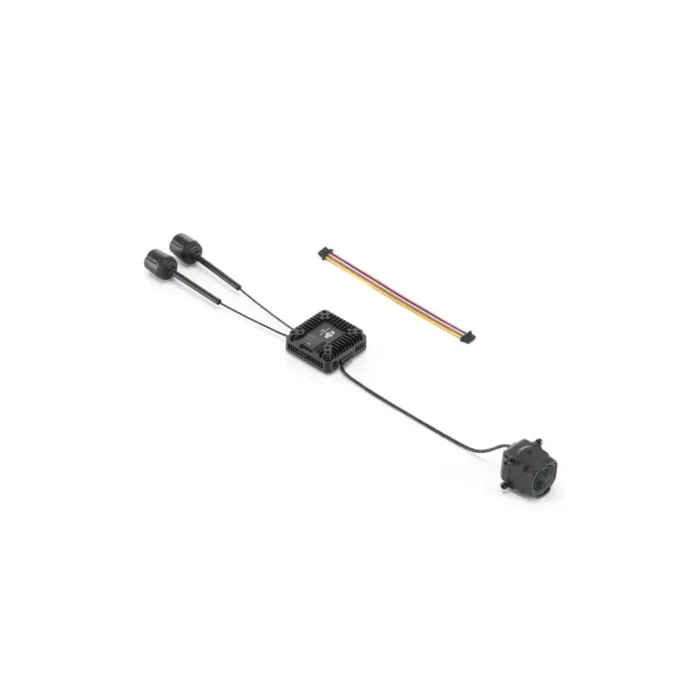

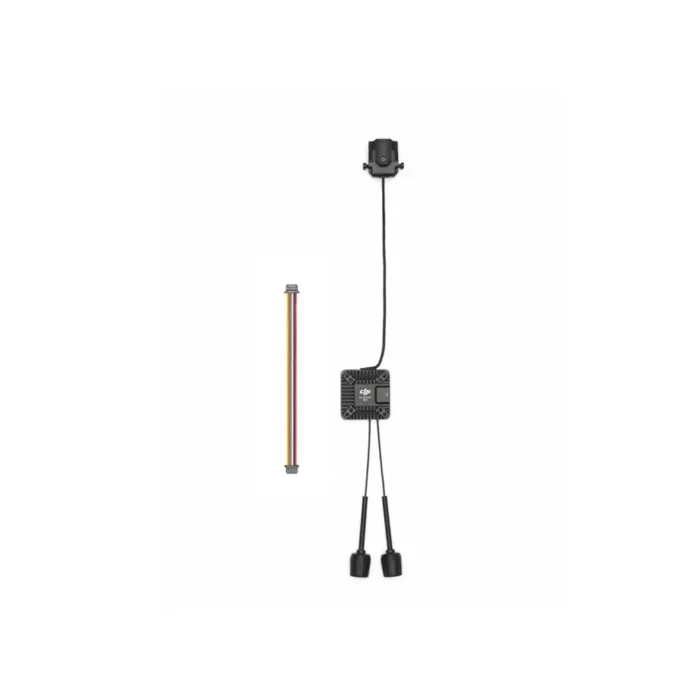

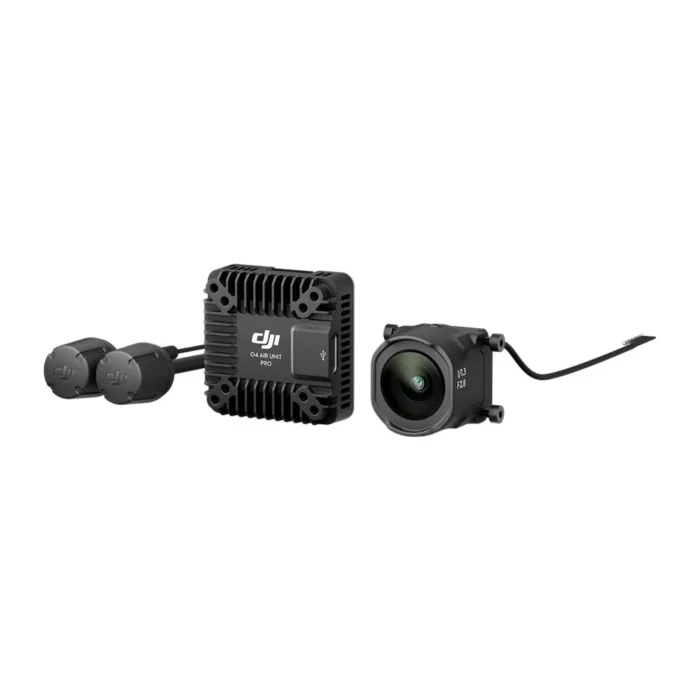

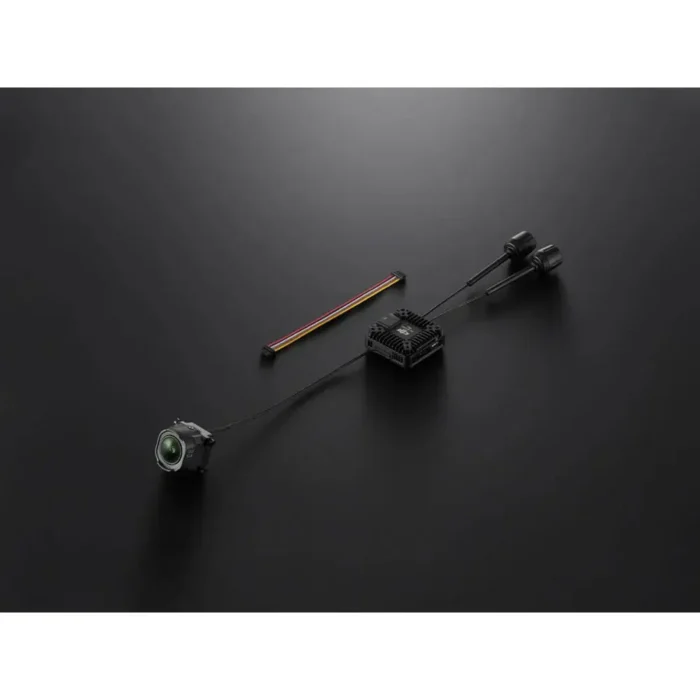

Contents of the Package:
1 unit of DJI O4 Air Unit Pro Camera Module
1 x DJI O4 Air Unit Pro Transmission Device
2 x DJI O4 Air Unit Pro Antennas
1 x DJI O4 Air Unit Pro 3-in-1 Wire
