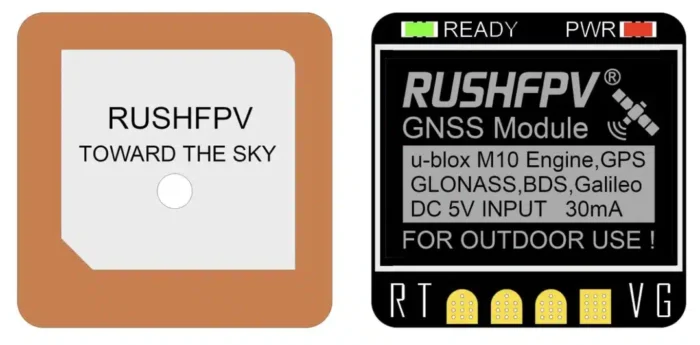

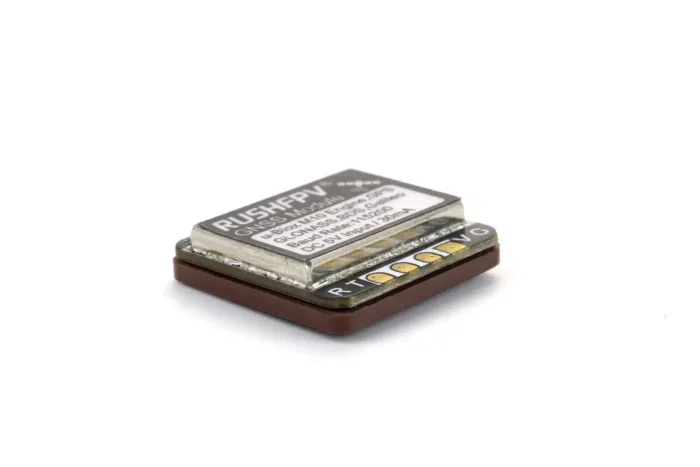

RushFPV GNSS Mini GPS

RushFPV GNSS Mini GPS

A compact navigation module designed for small FPV carriers.

The new uBlox M10 engine supports

GPS, BDS, GLONASS and GALILEO system navigation, and can connect three of them at the same time with a refresh rate of up to 10Hz.

Built-in backup battery and memory, support fast hot start.

The antenna has an anti-fouling coating, and the circuit part is sealed, reliable and durable

Technical specification

Receive Frequency Band: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1

Receiving channel: 72CH

Output protocol: UBLOX/NMEA

Output refresh rate: 1HZ-10Hz

Receiving sensitivity: -162dBm

Baud rate: 115200dps

Power input: 5V 30mA

Speed accuracy: 0.05m/s

Positioning accuracy: 2D ACC 1.5m

Maximum working height: 50000m

Maximum moving speed: 500m/s

Size: 18X18X4.8mm

Weight: 4.2g

Precautions

Please keep the top of the ceramic antenna unobstructed and avoid close to metal and carbon fiber. For the best reception, please use the bracket to install the GNSS antenna in a clear place, and keep it as far away as possible from the VTX and R/C receiver antenna.

When connecting to FC, please connect the RX of the

GNSS module to FC TX, and the TX of the module to FC RX.

The antenna is fragile, please do not hit or drop it.

The engraving marks on the ceramic antenna are produced by manually fine-tuning the center frequency to improve the performance of the antenna, and are not product defects.
