99,99 AED
Out of stock

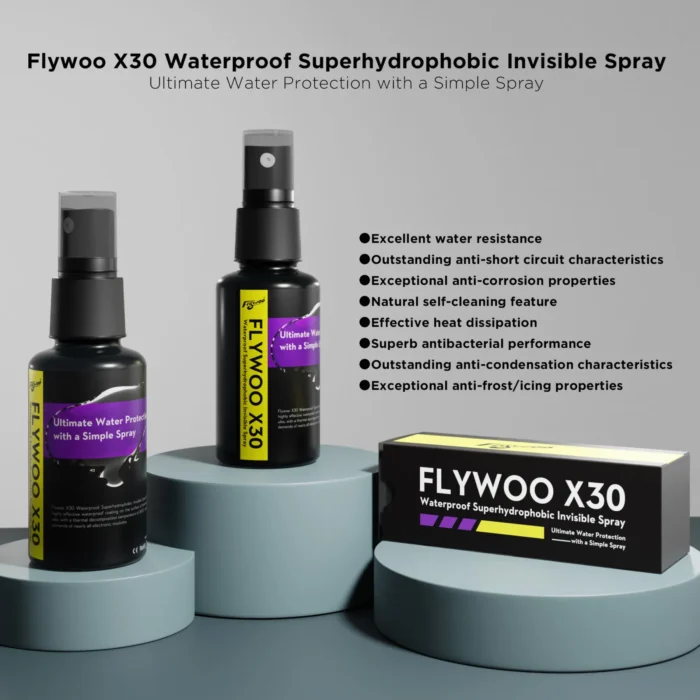

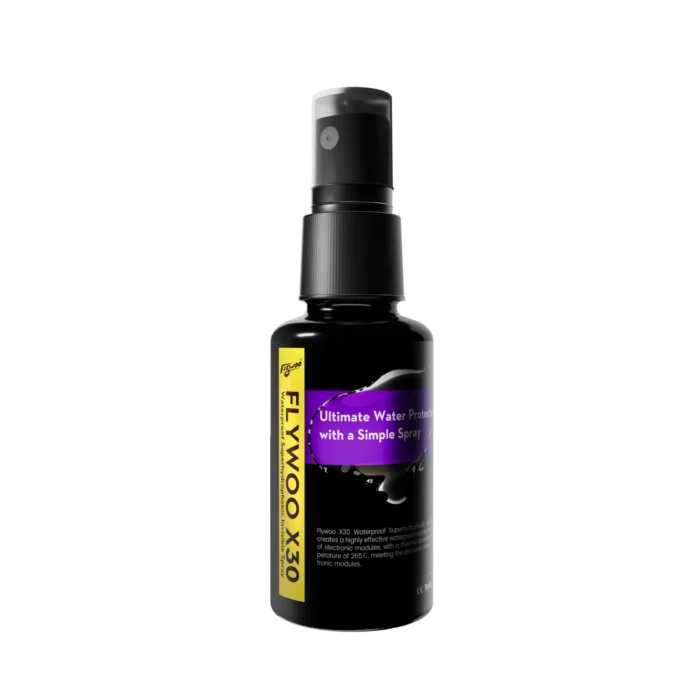

Flywoo X30 PCBA Waterproof Superhydrophobic Invisible Spray
1:Please note that the X30 waterproof spray cannot be transported together with other goods. We will default to shipping it separately.
2: Can’t not ship via DHLFEDEXUPS
Excellent Safety
The Flywoo X30 waterproof spray is an environmentally friendly product that does not contain harmful substances. However, traditional three-proof paints may release volatile organic compounds (VOCs), which have certain impacts on the environment and human health.
Comparison to Traditional Conformal Coatings
The protective performance of the three-proof paint relies largely on the compactness of the coating. This is also the focus of the research and development for three-proof paint manufacturers. Moreover, the super-hydrophobic coating inherently possesses natural characteristics such as waterproofing, anti-short circuit, anti-corrosion, anti-salt spray, anti-mold, and anti-dust. Consequently, superhydrophobic materials are ideal alternatives to conformal coatings!
| The needs of the electronics industry | Superhydrophobic Coating | Conformal Coating |
| waterproof | The biggest feature of superhydrophobic is
waterproof |
Depends on coating density |
| Short circuit prevention | Excellent anti-short circuit characteristics due to
repellency of water / moisture / corrosive liquids |
Depends on coating density |
| Corrosion protection | Natural repellency of water or corrosive liquids for
excellent corrosion protection properties |
Depends on coating density |
| saltfog–proof | Excellent anti-salt spray properties due to natural
repellency of salt spray |
Depends on coating density |
| fungi-proof | Hydrophobic and dry surface will not harbor bacteria | Adding anti-mold additives, which will affect
the compactness of the coating |
| dustproof | Self-cleaning effect similar to lotus leaf to prevent
dust |
No dustproof effect |
| radiating | Inorganic-organic composite coating to improve heat
dissipation |
Poor heat dissipation of polymer materials |
Huawei Case: Super Hydrophobic VS 3M Conformal Coating
| Comparison Items | Our Superhydrophobic Coating | 3M Conformal Paint |
|---|---|---|
| Thickness | ~20µm | ~40µm |
| Contact Angle | 160° | 80° |
| Wettability (water) | Completely non-wetting | Semi-immersion |
| Wet and Dry Cycle | No change in contact angle after 1000 times | After 100 times, the contact angle becomes 30° |
| Salt Spray Performance | 1000 h | 500h |
| Adhesion Level | 0 level | 0 |
| Anti-short Circuit Time (Accelerated Test in a Salt Spray Chamber) | 1500h | 1000h |
Based on the comparison above, this superhydrophobic coating clearly outperforms 3M’s conformal coating in various performance metrics, including:
1. Thinner coating thickness – The superhydrophobic coating only requires 20-50 μm, compared to 40-120 μm for the traditional conformal coating.
2. Higher hydrophobicity – The superhydrophobic coating has a contact angle of 160°, while the 3M coating is only 80°, indicating much stronger water repellency.
3. Superior durability – After 1000 wet-dry cycles, the superhydrophobic coating maintained its contact angle, whereas the 3M coating dropped to 30° after just 100 cycles.
4. Enhanced anti-corrosion and anti-short circuit performance – The superhydrophobic coating achieved 1000 hours of salt spray resistance and 1500 hours of anti-short circuit time, outperforming the 3M coating’s 500 hours and 1000 hours respectively.
These significant advantages make the superhydrophobic coating an ideal protective solution for the electronics industry. Its combination of thin profile, extreme water repellency, and outstanding durability and protective capabilities make it a superior alternative to traditional conformal coatings.
Excellent heat dissipation
The thickness of conventional conformal paint is 40 – 120µm, but our super-hydrophobic coating only needs 20 – 50µm.
| Resin Type | Acrylic Resin | Epoxy Resin | Silicone Resin | Polyurethane Resin | p-xylene | Our Superhydrophobic Materials |
|---|---|---|---|---|---|---|
| Thermal Conductivity (W/mk) | 0.2 – 0.8 | 0.2 – 1 | 0.8 – 1.2 | 0.35 – 1.1 | 0.2 – 0.5 | 3.3 |
| Thermal Resistance (10⁻⁴m²K/W) | 1 – 4 | 0.8 – 4 | 0.6 – 1 | 0.7 – 2.2 | 1.6 – 4 | 0.1 |
The data comparison indicates that our superhydrophobic material has an impressive thermal conductivity of 3.3 W/mK, which is significantly higher than common resin-based coatings. Additionally, its thermal resistance is only 0.1 x 10⁻⁴m²K/W, far superior to other materials.
This means that, compared to traditional coatings, our superhydrophobic coating can more effectively aid in heat dissipation for electronic devices, thereby enhancing overall thermal performance. This is particularly crucial for high-power electronic products.
In summary, with its excellent thermal conduction properties, our superhydrophobic coating can provide superior heat dissipation for electronic products, making it an ideal protective solution.
China CNAS has tested this product, and all harmful substances do not exceed the standard.
(2)-00.png?w=793&h=1123)
(2)-04.png?w=793&h=1123)
For More Accessory Click

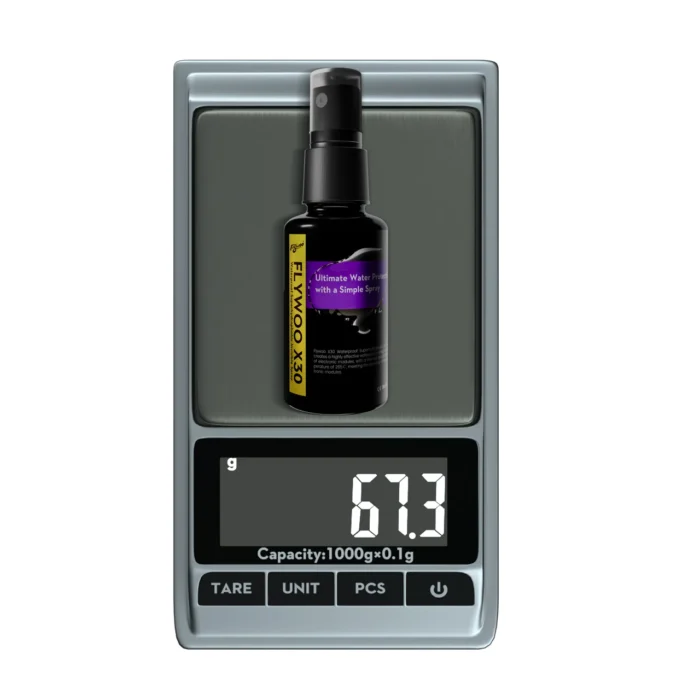

| Weight | 0,2 kg |
|---|
