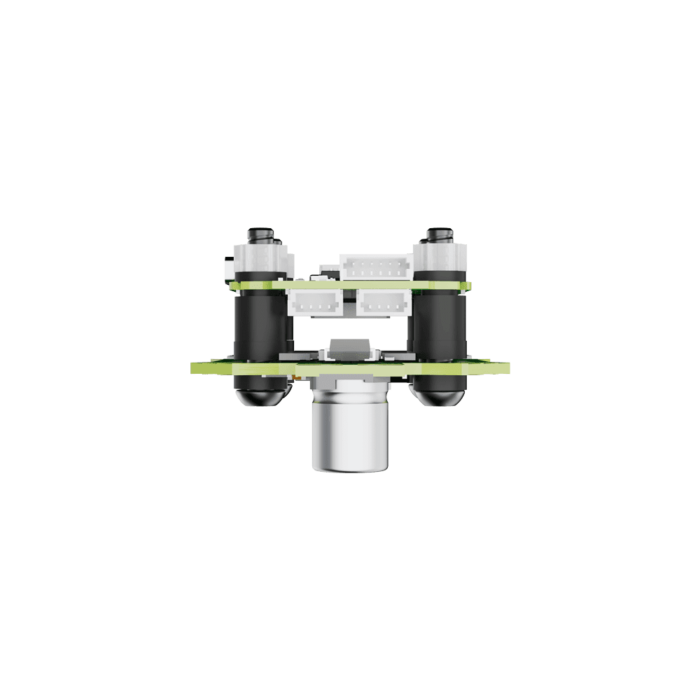

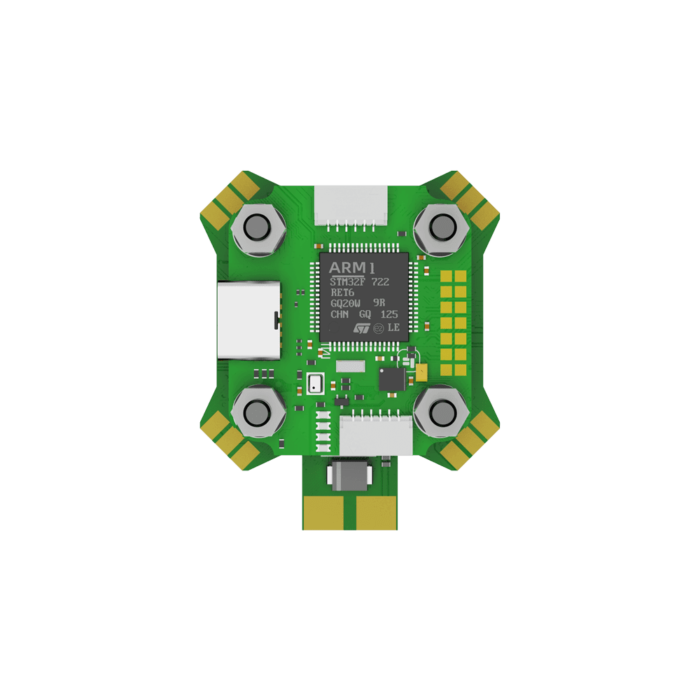

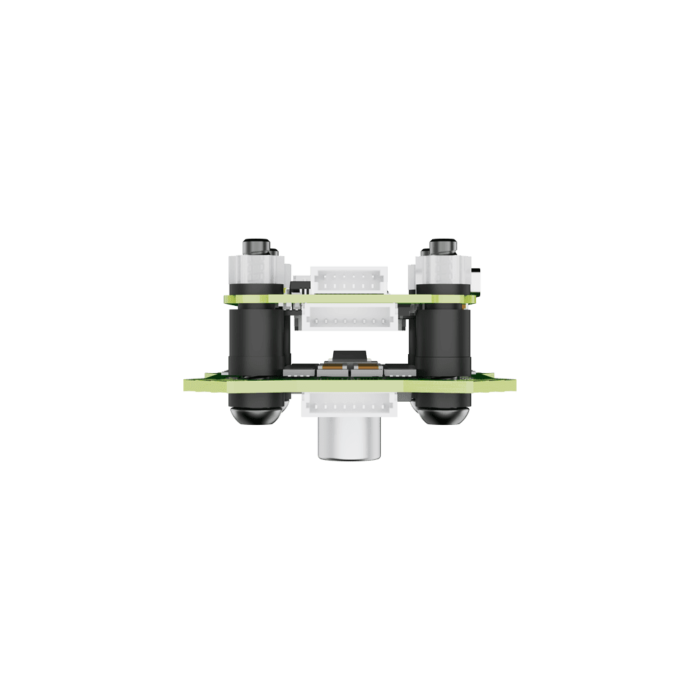

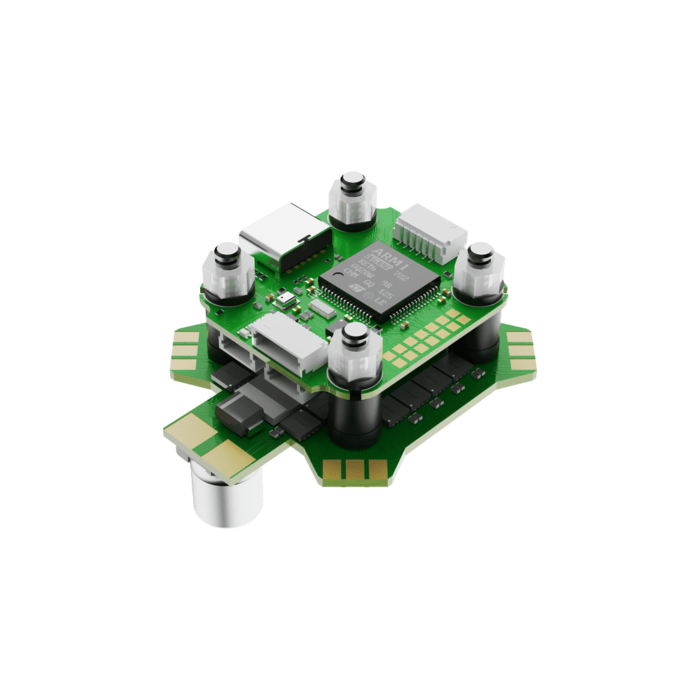

BLITZ Mini F7 Stack (E55 Mini 4-IN-1ESC)
529.99 AED
Recommended Parts :
1 in stock (can be backordered)
Description
BLITZ Mini F7 Stack (E55 Mini 4-IN-1ESC)
Features :
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
FC Specifications :
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g
Wiring Suggestion :
MCU: STM32 F722
1 for VTX HD / Analog
2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
ESC Specifications :
Dimension: 35*42mm
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU： G071
Constant: 55 Amps
Burst: 60 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G2
Firmware: BLHeli 32

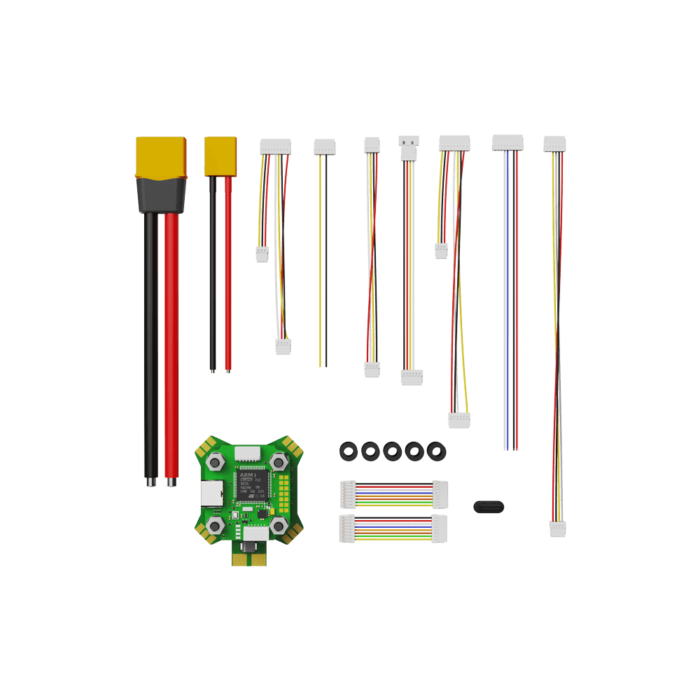

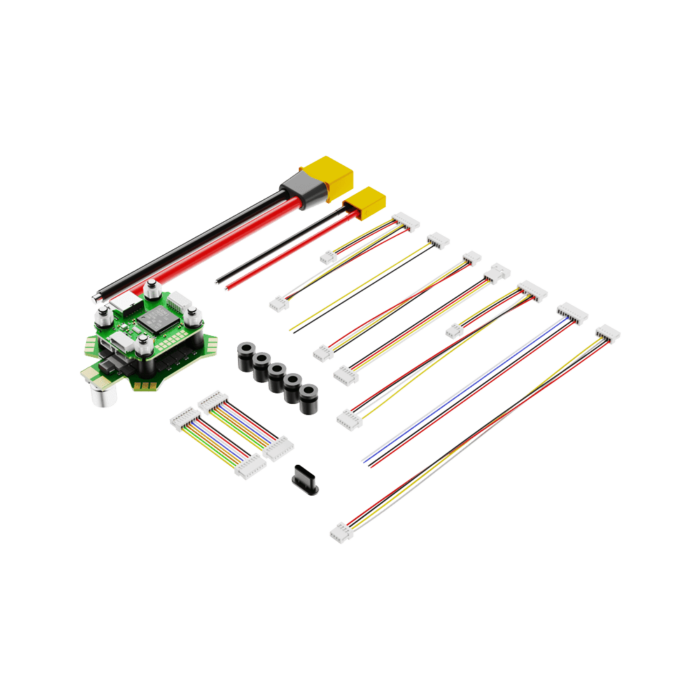

BLITZ Mini F7 Stack (E55 Mini 4-IN-1ESC) Packing List :
Additional information
| Weight | 0.050 kg |
|---|
Brand
Brand
iFlight
