Name: iFlight BLITZ M10 GPS V2
SKU: B015344
Availability: InStock

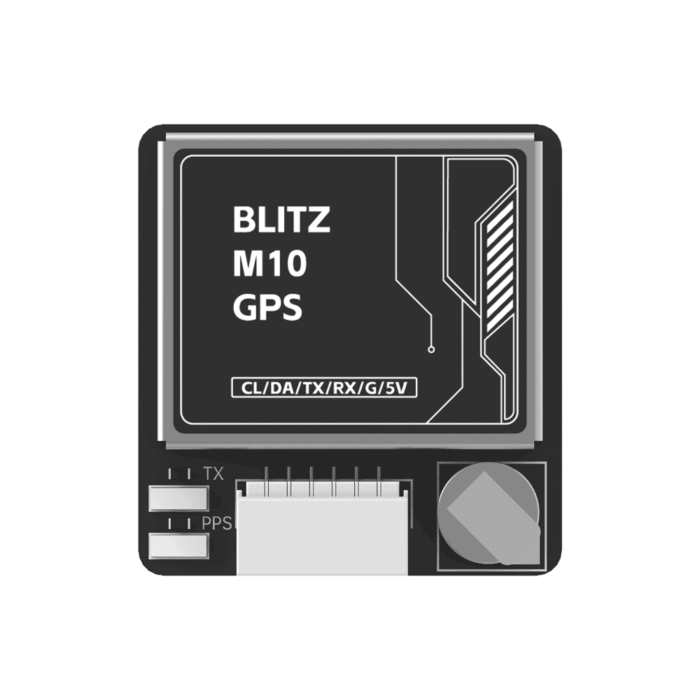

iFlight BLITZ M10 GPS V2

149,99 AED

5 in stock (can be backordered)

Purchase & earn 150 points!

iFlight BLITZ M10 GPS V2

iFlight BLITZ M10 GPS Features :

UBLOX M10 chip

Compass module QMC5883L integrated

Built-in farad capacitor for faster hot start

Onboard LNA (Low Noise Amplifier)

10 Hz Refresh rate

Built-in Flash

High sensitivity 18x18mm GPS patch antenna, low power consumption, strong signal, lightweight.

iFlight BLITZ M10-GPS Specifications :

Compass module: QMC5883L

Baud Rate: 4800bps-115200bps (Default – 115200bps)

Sensitivity: Tracking: -167dBm

Cold start: 26s

Hot start: 1s

Maximum height: 50000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Refresh Rate: 10 Hz

GPS patch antenna size: 18 x 18 mm

Total dimensions: 20 x 21 x 6.5 mm

Weight: 5.2 g（±0.5g）

Input Voltage: 3.3-5.5 V, current 40mA

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA

Packing List :

1 x BLITZ M10 GPS

1 x Cable set
