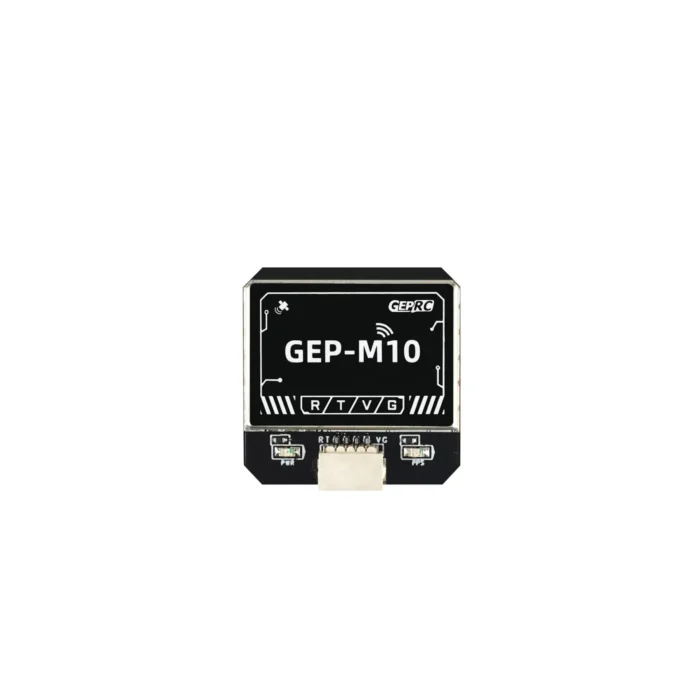

GepRC M10 GPS Module

GepRC M10 GPS Module

Summary

The GEPRC GPS series product line has been fully upgraded. The GEP-M10 series of GPS products based on u-blox M10050 chip  are now launched.

The GEP-M10 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites.  There are 12*12mm and 18*18mm ceramic antenna versions, providing better receiving ability. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

Optional QMC5883L/IST8310 magnetometer and DPS310 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Specifications

• GPS chip：u-blox M10050
• Input voltage：3.3V-5V
• Receiving frequency：GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
• Operating mode：GPS+BDS+LALILEO+QZSS+SBAS joint positioning
• Channel 72ch
• Navigation satellites：Up to 32 pieces
• Output protocol：UART(ublox),I2C（Baro,Mag）
• Baud rate：115200bps
• Output Frequency：10Hz
• Speed Accuracy：0.05 m/s
• Horizontal positioning accuracy：2D ACC1.5m(Weather)
• Timing accuracy：30 ns
• Receiver sensitivity：Trace-162dBm，Capture-160dBm
• Dynamic characteristics：Max Height: 50000m, Max Speed: 500m/s
• Maximum acceleration：4G

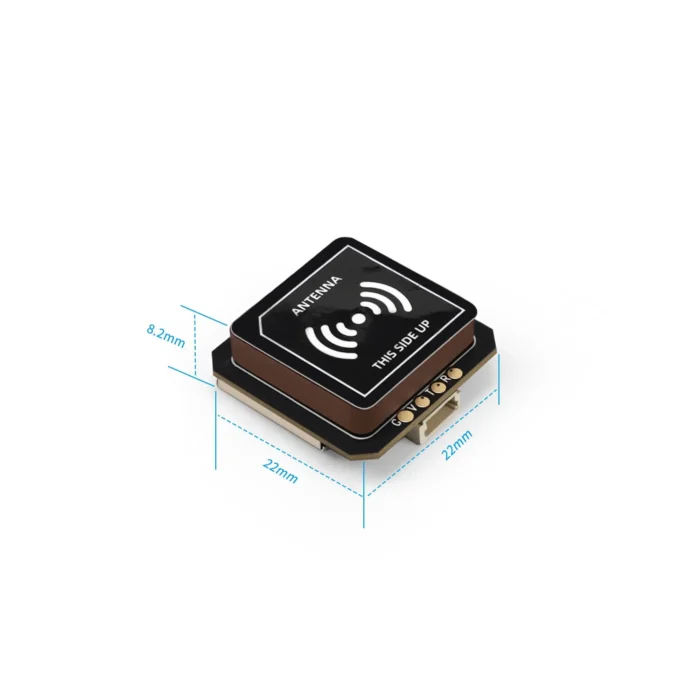

• Size：15x15x5.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)

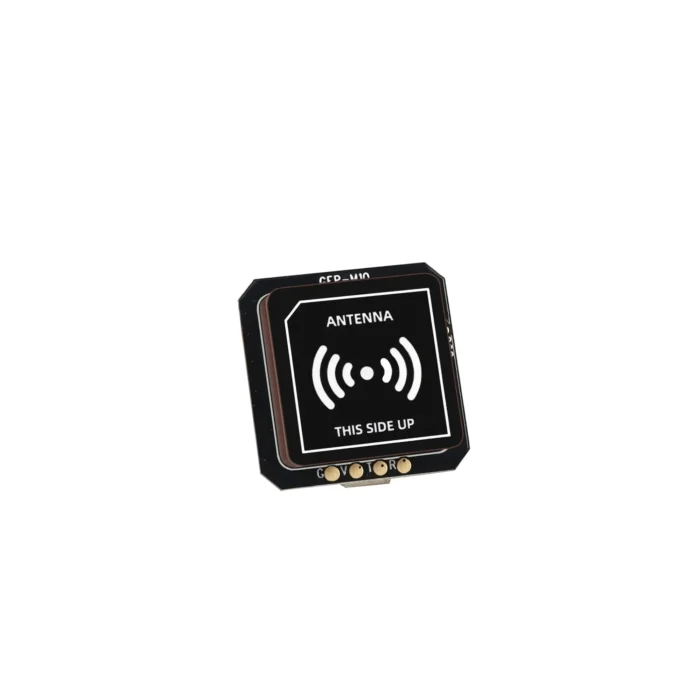

• Antenna size：12x12mm(GEP-M10nano),18x18mm(GEP-M10)

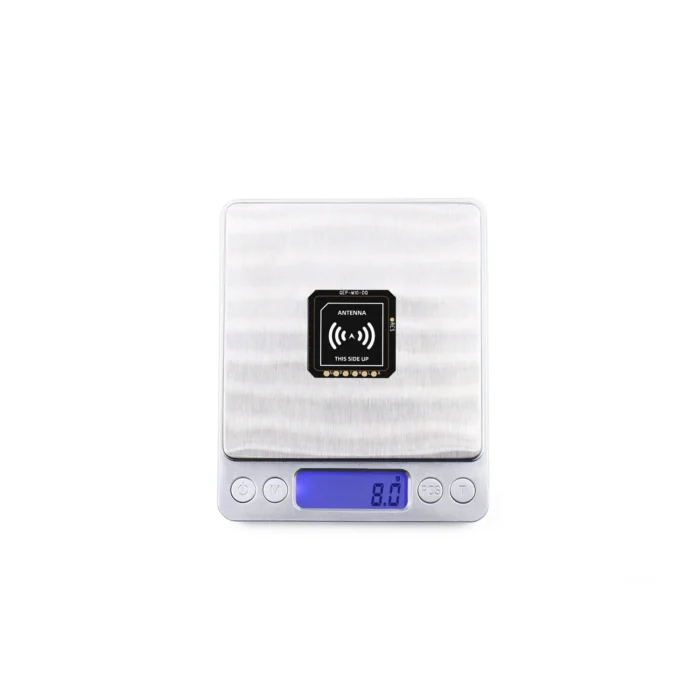

• Weight：2.5g(GEP-M10nano),7.8g(GEP-M10)

Features

1. u-blox M10050 chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 12x12mm or 18x18mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer + barometer, more collocation scheme

Includes

1 x GPS module

1 x Terminal wire

1 x Instruction manual

1 x GEPRC sticker

1 x Heat shrink tubing
