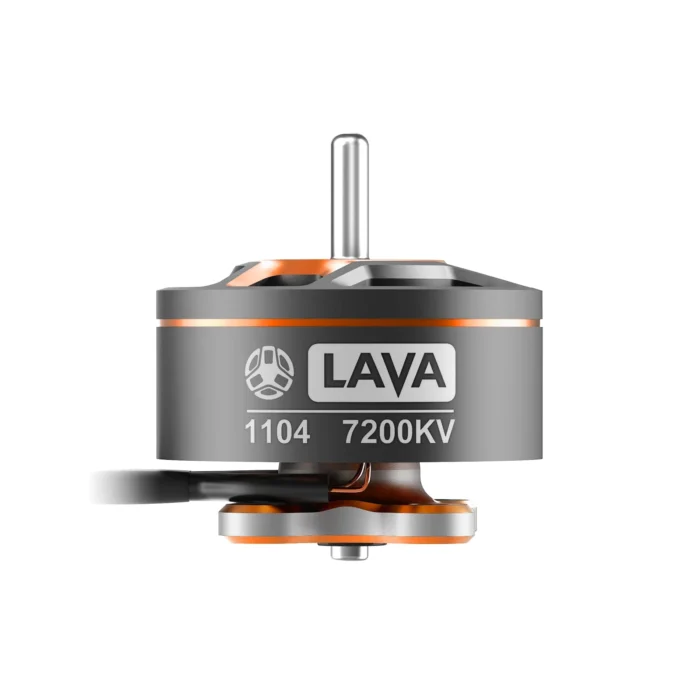

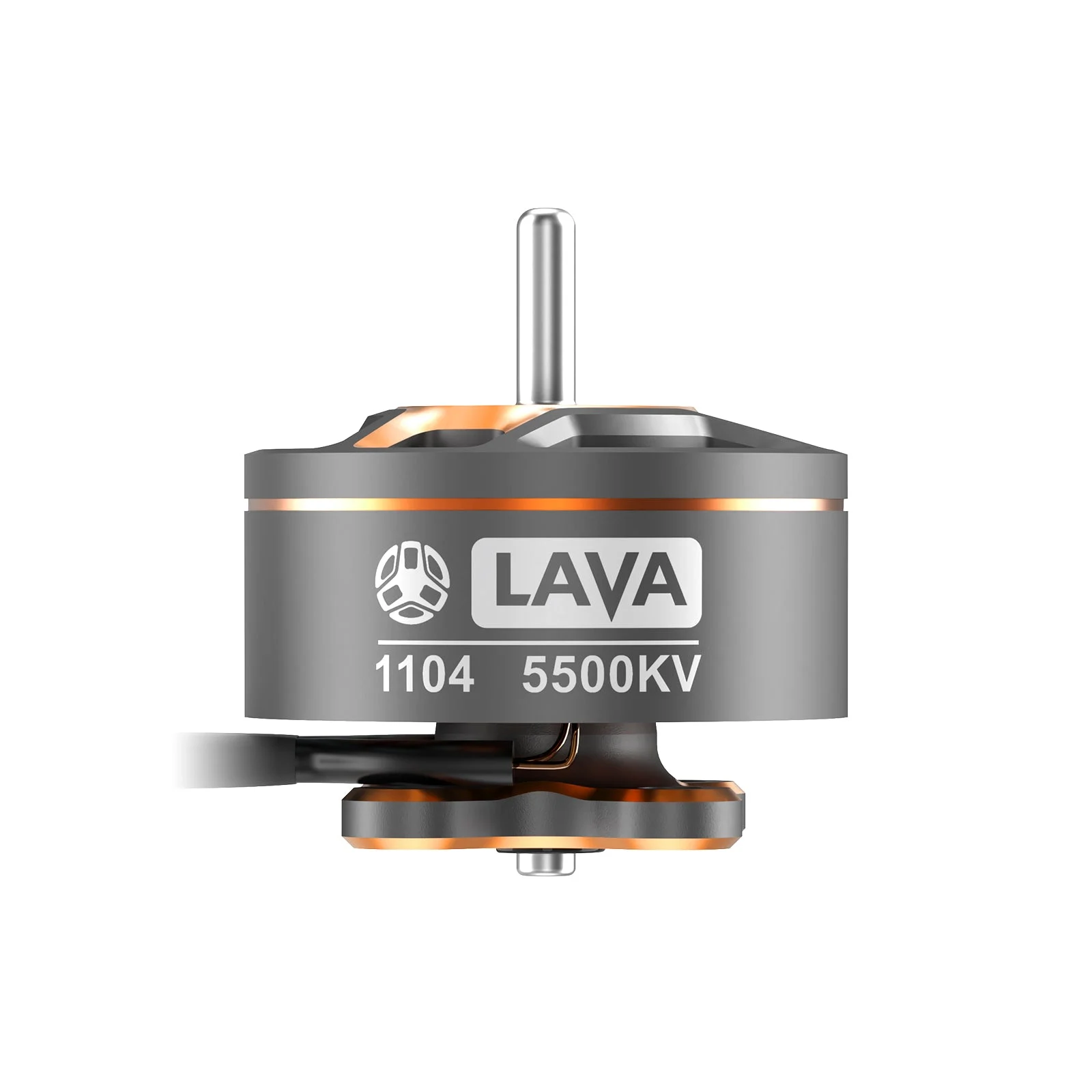

BETAFPV LAVA Series 1104 Brushless Motor | 5500KV 24mm (1PC)

The LAVA Series 1104 Brushless Motors, available in 5500KV for 4S and 7200KV for 3S, are designed specifically for 2.2″ quads with smoother torque output performance. Combined with the Gemfan D2.2 3-Blade Propellers, they enable pilots to execute swift, agile, and smooth freestyle maneuvers with precision. This powerful combination ensures ample creative space for cinewhoop pilots to explore and capture the most imaginative aerial feats, easily meeting professional film creation needs while leading the 2.2″ cinewhoop class to new heights.

Bullet Points

• Unleash the power of freestyle with the LAVA Series 1104 motors, precision-engineered for 3S and 4S 2.2” quads. Experience a quantum leap in performance, taking the Pavo20 Pro II freestyle experience to new heights.
• With the Gemfan D2.2 3-Blade Propellers, the max thrust can reach more than 230g, achieving a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle experience.
• Paired with the above GF props, the force efficiency is as high as 4.7g/w when flying at low throttle, and even at full throttle load conditions, it can reach 1.9g/w, providing an efficient propulsion system for the quad.

Specifications

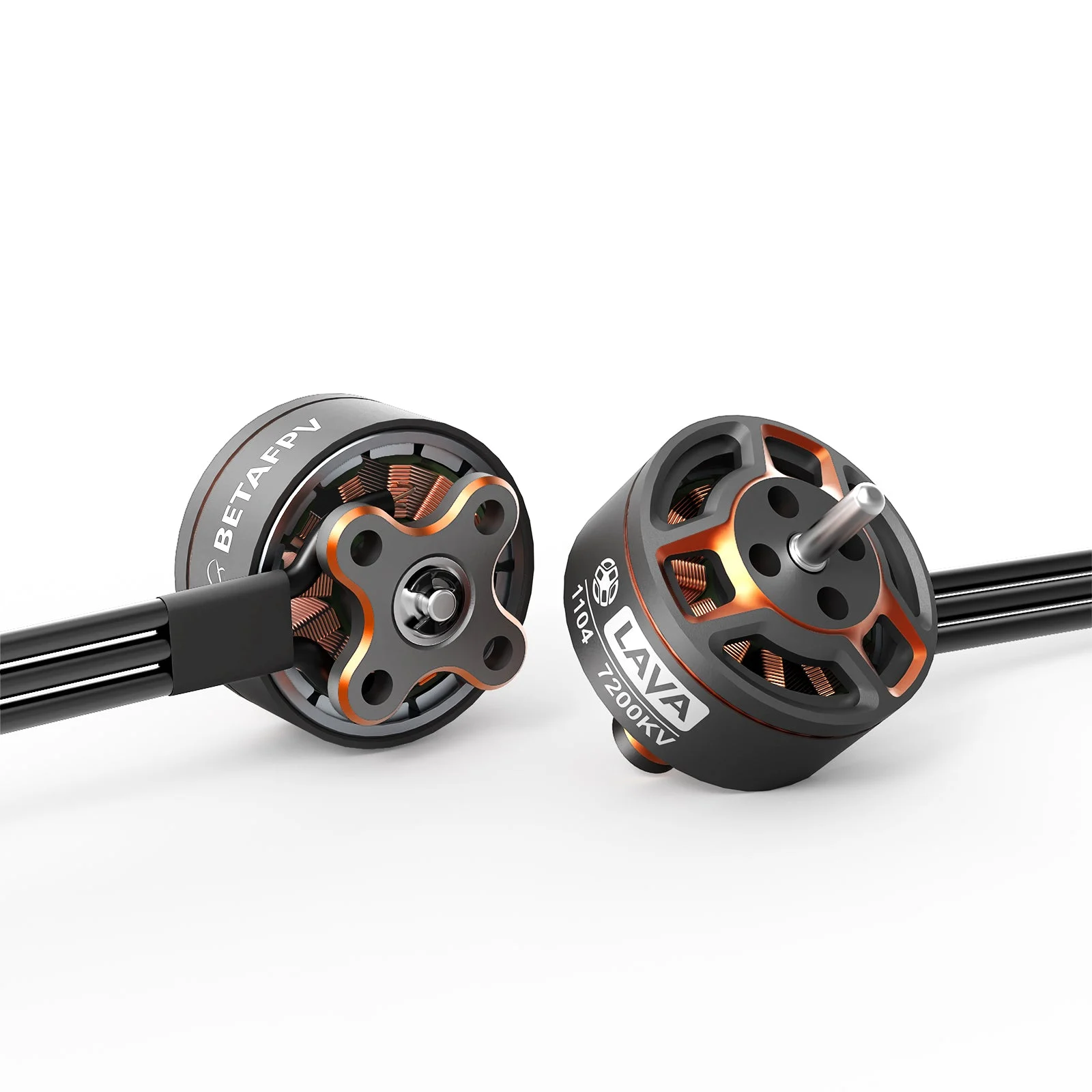

• Items: LAVA Series 1104 Brushless Motors
• Maximum Power: 123.5W (5500KV) / 122.5W (7200KV)
• Maximum Current: 7.7A (5500KV) / 10.2A (7200KV)

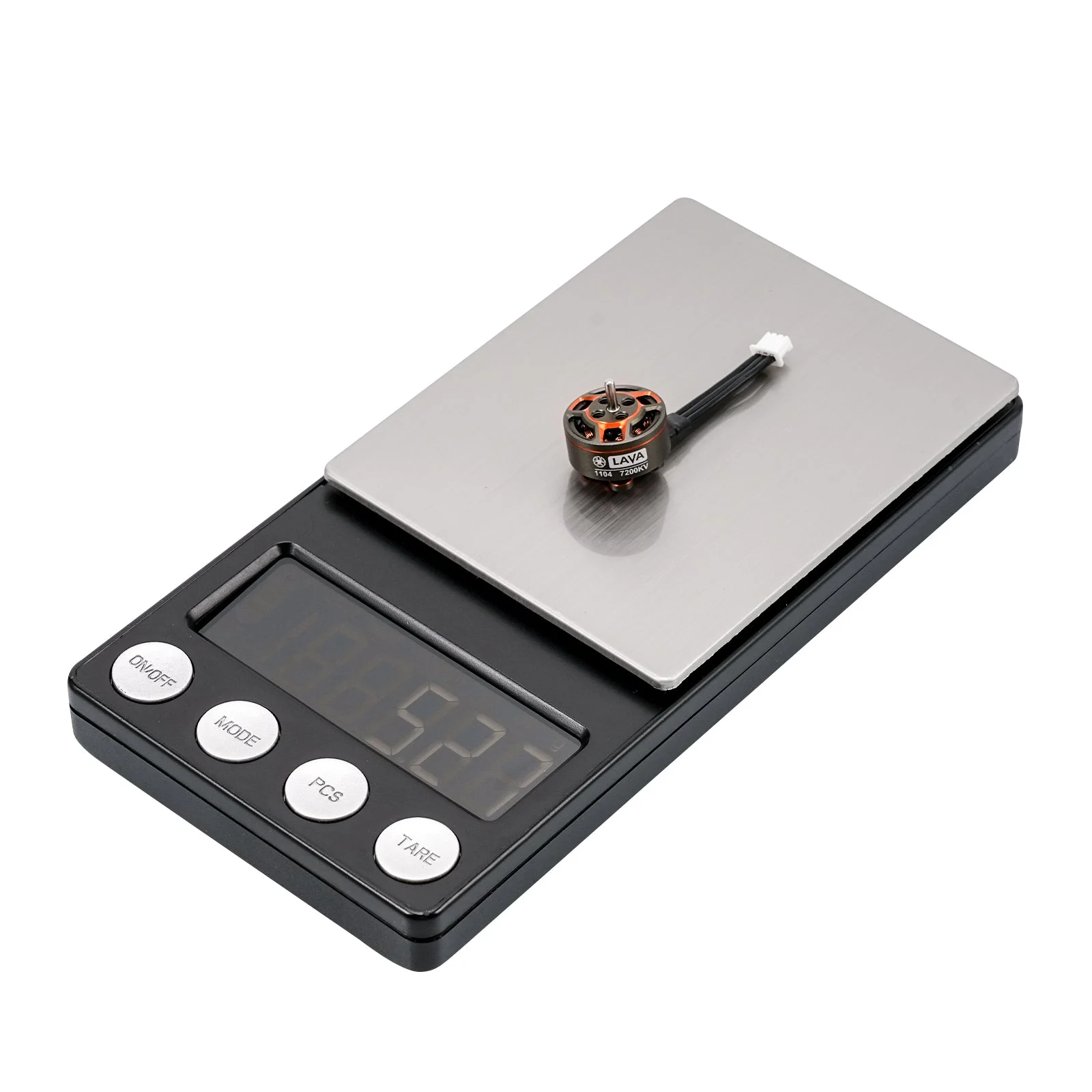

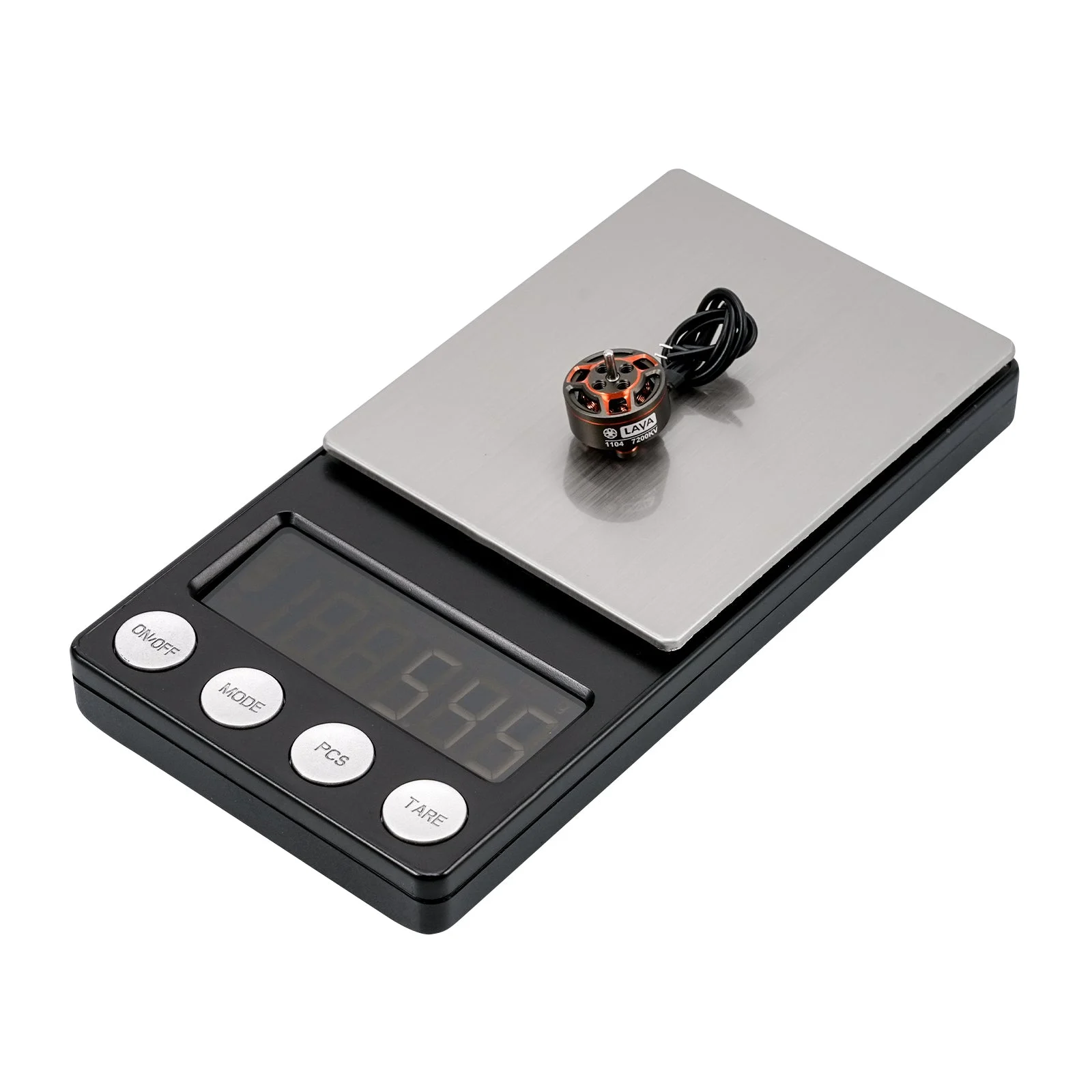

• Weight: 5.3g
• Shaft Diameter: ø1.5mm
• Shaft Length: 5mm
• Wire Specification: 28AWG

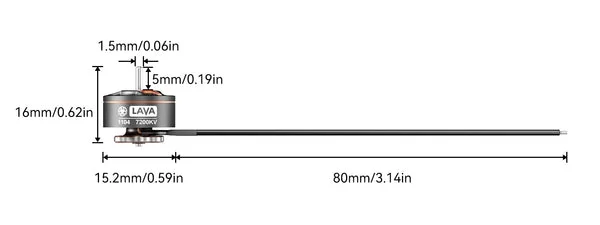

• Wire Length: 24/80mm
• Motor Mounting Hole Size: 4*M2 Ø9mm
• Propeller Mounting Hole Size: 4*M2 Ø5mm

Note: Only the 24mm length Version has a connector, suitable for the Pavo20 Pro and Pavo20 Pro II.

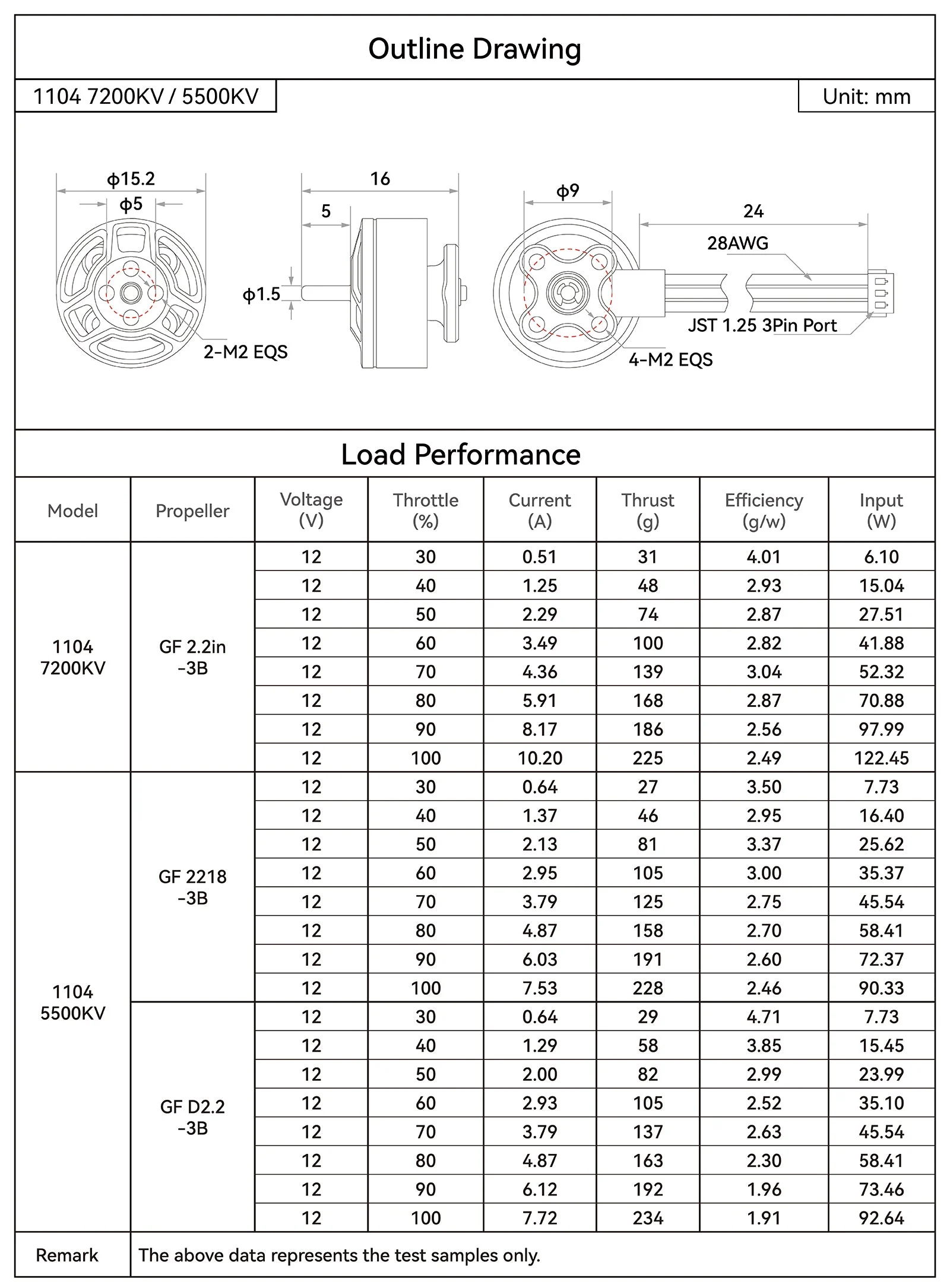

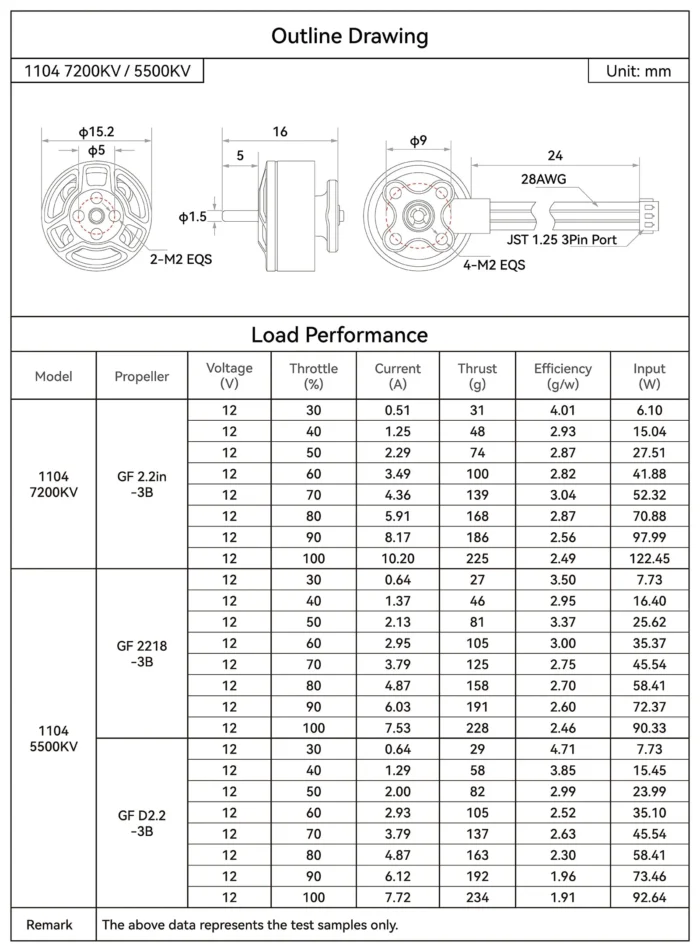

Diagram

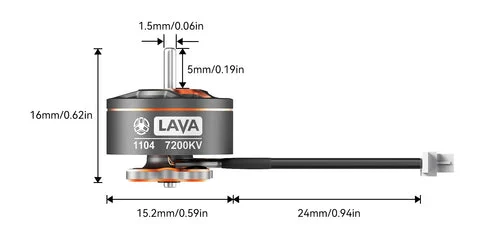

LAVA Series 1104 Brushless Motors (24mm):

Recommended Parts

• Props: Gemfan D2.2 3-Blade Propellers (1.5mm Shaft)
• Quad: Pavo20 Pro II Brushless Whoop Quadcopter
• FC: Cube 2-4S FC, F4 2-3S 20A AIO FC V1
• Battery: LAVA II 4S Battery, LAVA II 3S Battery, LAVA Series 3S 450mAh / 550mAh Battery

Package

• 1 * LAVA Series 1104 Brushless Motors
• 4 * M2 * 4 Hex Flat Head Screw
• 4 * M2 * 5 Hex Flat Head Screw
