Name: FlyWoo GOKU GN 745 45A AIO 32bit (MPU6000 ) V3
SKU: FW19003222
Availability: InStock

FlyWoo GOKU GN 745 45A AIO 32bit (MPU6000 ) V3

349.99 AED

3 in stock

Purchase & earn 350 points!

SKU: FW19003222 Categories: ESC & FC, Stack Tower

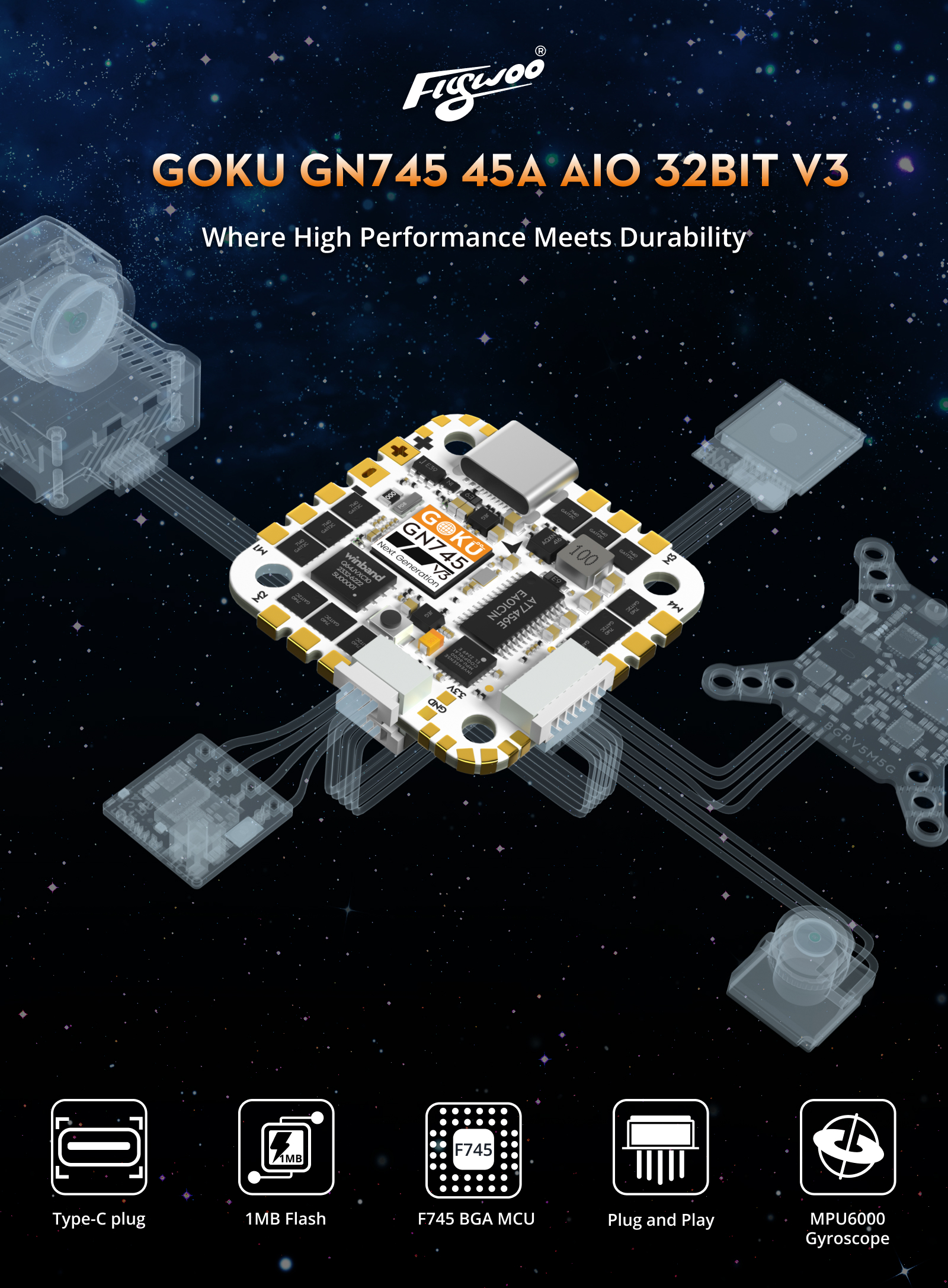

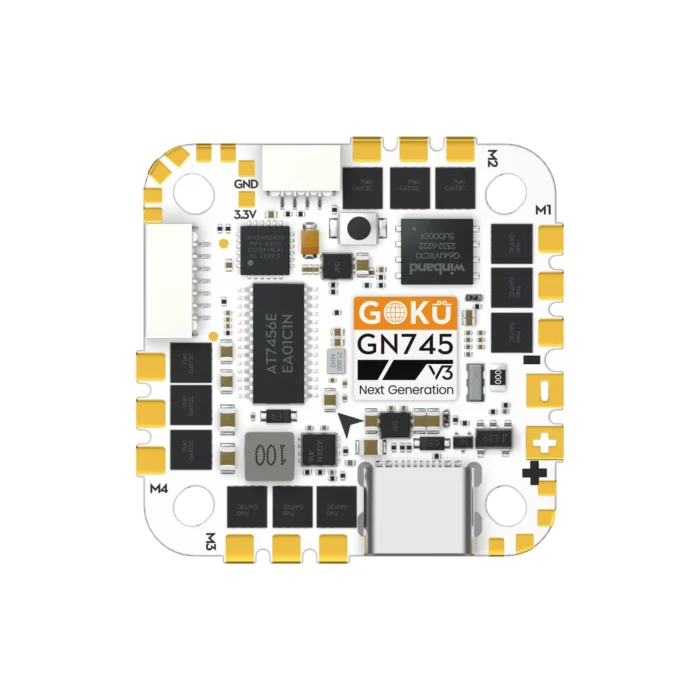

FlyWoo GOKU GN 745 45A AIO 32bit (MPU6000 ) V3

Product Description

Since its launch, the GOKU GN745 AIO has stood as Flywoo’s top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we’re excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.

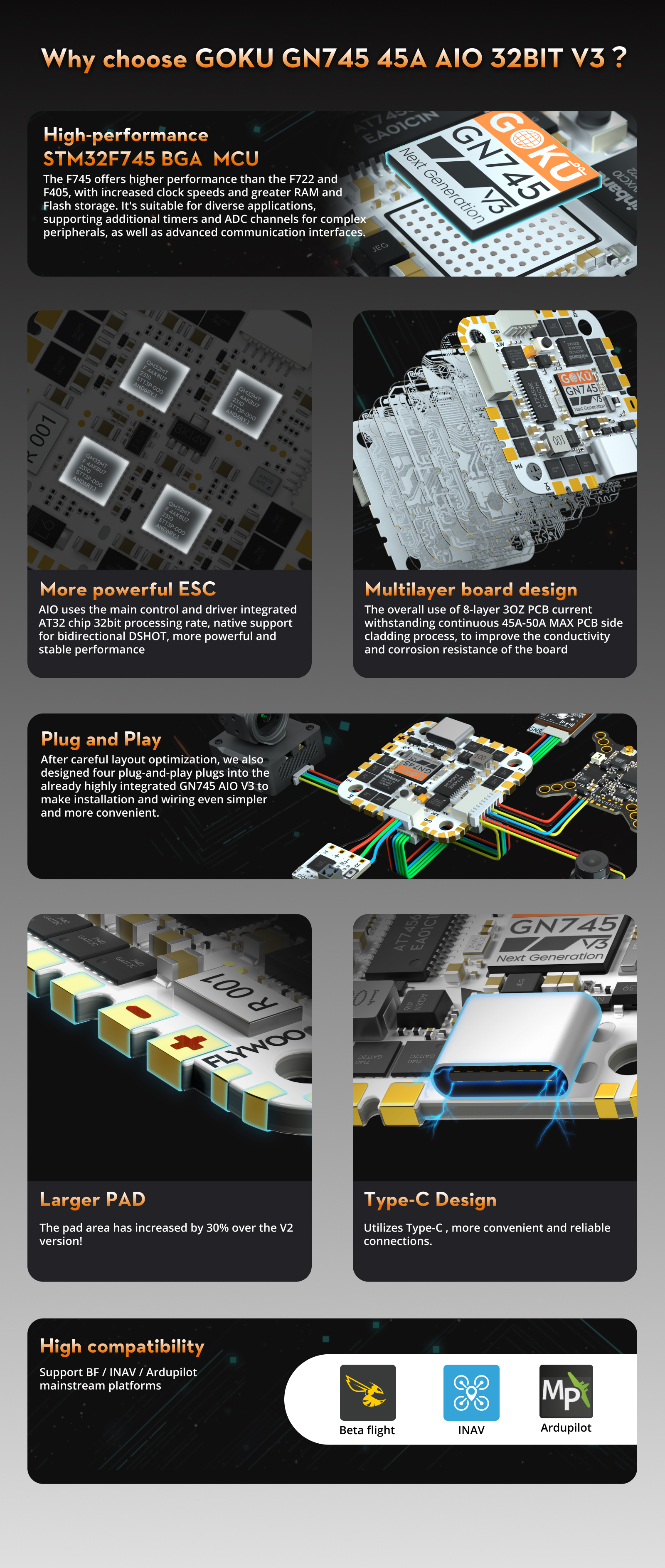

Highlights：

Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.

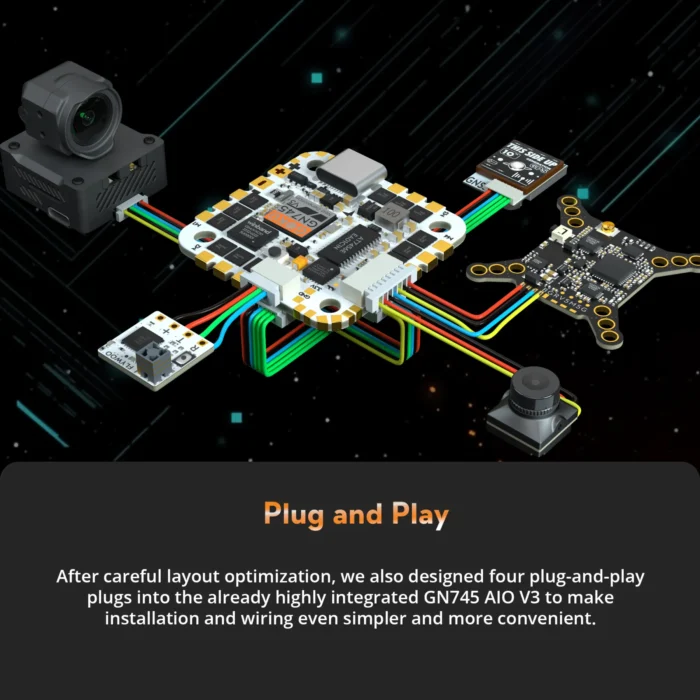

Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
Compatibility: Supports BF, INAV, and Ardupilot platforms.
New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
Better Protection: Larger motor pad area with improved overcurrent protection.

	GOKU GN745 45A AIO 32bit (MPU6000 ) V3	GOKU GN745 45A AIO 32bit (MPU6000 ) V1.2
Firmware:	STM32F745 BGA	STM32F745 BGA
Continuous Current:	45A-50A MAX	40A-45A MAX
BEC:	5V 2A	5V 2A/9V 2A
ESC	32bit	32bit
Flash:	1MB	1MB
Black Box	16mb	16mb
Barometer:	DPS310/SPL06	DPS310/SPL06
Gyro:	MPU6000	MPU6000
Motor:	M1-M4 OUTPUT I2C: SCL/SDA	M1-M4 OUTPUT I2C: SCL/SDA
Uarts:	1,2,3,4,5,6,7	1,2,3,4,5,6
Plug Uart ports	YES
connector：	Type-C	Micro
OSD:	AT7456E	AT7456E
Hole:	25.5*25.5-3mm	25.5*25.5-3mm
Size:	33.5×33.5mm	33.5×33.5mm
Weight:	9.4g	8.5g

Specifications：

BF Flight Controller Firmware: FLYWOOF745AIO
INAV Firmware: FLYWOOF745
Ardupilot Firmware: FLYWOOF745
MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
IMU: MPU6000 (SPI)
Barometer: SPL06
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 16Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 33.5×33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
Weight: 9.4g

Onboard 4in1 ESC

Support AM32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
Input Voltage: 2-6S Lipo
Continuous Current: 45A
Firmware: GOKU_F4A32_PRO

In the Box

1x UNICON UPL Capacitor 25V 470UF
4x M2x6.6 Shock-Absoring Ball
4x M2 Rubber Ring
1x XT30 Power Cable
1x DJI O3 Connection Cable
1x VTX & Camera Connection Cable
1x Receiver Connection Cable
1x GPS Compass Connection Cable

For More Stack Options Click
