DJI O4 Air Unit

Features :

Compatible with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3.

Compatible with DJI FPV Controller 2 or 3

Lightweight FHD FPV Digital Video Broadcasting

20 ms Low Delay, 10 km Distance

1/2-inch CMOS Imaging Sensor

4K/60fps Video Capture

1080p/100fps Real–Time Display

8.2g Featherweight Structure

New Altitudes in Transmission, Greater Liberty in Flight

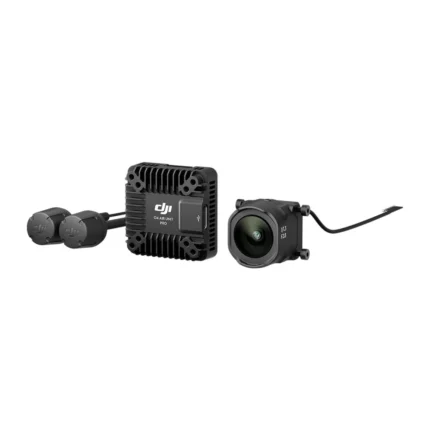

The DJI O4 Air Unit Series features the DJI O4 video transmission system, delivering ultra-low latency for enhanced control responsiveness. Combined with the dual-antenna setup of the DJI O4 Air Unit Pro, the maximum transmission range can extend to 15 kilometers. This system is capable of automatically choosing the most stable frequency. Whether flying above mountains and rivers or moving through indoor areas, execute with confidence and accuracy.

Crisp and Smooth, Visually Impressive

The DJI O4 Air Unit Series can record video in 4K at 60 frames per second. The video transmission system employs H.265 video encoding, enabling high-frame-rate streaming at 1080p/100fps, guaranteeing clear and fluid live visuals. Regardless of your speed while flying, the camera perspective stays with you.

New Racing Mode: Unbounded Speed, Endless Enjoyment

The DJI O4 Air Unit Series unveils a new Racing mode, achieving video transmission latency as low as 15 ms for the O4 Air Unit Pro and 20 ms for the O4 Air Unit. It accommodates as many as eight aircraft competing at the same time, offering you a thrilling, fast-paced experience in the air.

Enhanced Imaging: Cinematic Wonders at Your Command

The DJI O4 Air Unit comes with a 1/2-inch image sensor, which can record video at 4K/60fps. The DJI O4 Air Unit Pro advances with a 1/1.3-inch image sensor, enabling 4K/120fps video capture. There’s no requirement for an outside action camera to capture ultra-wide-angle, high-definition video. Crafting beautiful visuals has never been this easy.

Even in Bright Light, Craft With Assurance

The DJI O4 Air Unit Pro Camera Module is compatible with the DJI Avata 2 ND Filter Set (ND8/16/32). Even in well-lit environments, it guarantees even exposure and accurate colors. This enables you to adjust light intake and shutter speed flexibly, effortlessly obtaining natural motion blur and enhancing the dynamism and impact of your footage.

Compatible With Canvas Mode: Customize Your Flights As You Wish

Maintain complete authority over what appears on your display. The DJI O4 Air Unit Series is compatible with Canvas Mode and Betaflight OSD configurations. You have the ability to modify the real-time information and arrangement shown on your goggles display, ensuring that flight data is easily recognizable, while improving your control accuracy.

Sleek Design, Simple Adjustment

The DJI O4 Series features a compact and lightweight design with broad compatibility. The DJI O4 Air Unit is designed to accommodate drone frames of 2 inches and less, enabling adaptable configuration for different creative flying situations. Feel the excitement of flying as you effortlessly record stunning videos.

Specifications:

DJI O4 AIR MODULE

Mass:

Aerial Unit (excluding camera module): About. 5.1 grams

Air Unit (includes camera module): Approx. 8.2 grams*

Antenna: About. 0.75 grams

The lens mount is excluded. The weight is 9.2 grams including the lens mount.

Measurements:

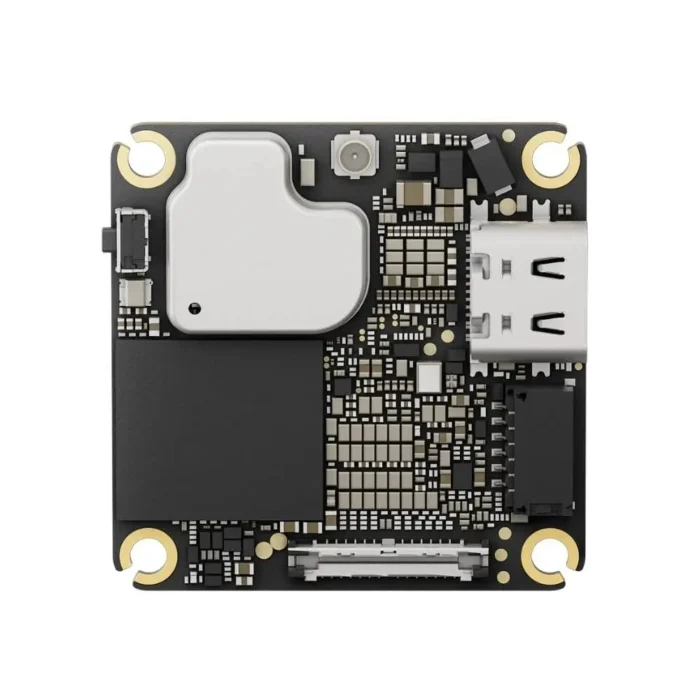

Transmission Module: 30×30×6 mm (Length×Width×Height)

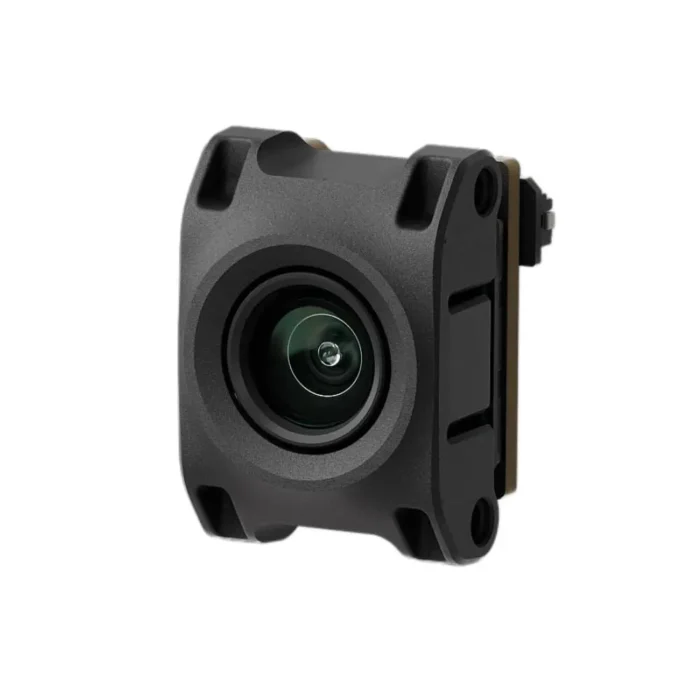

Camera Module: 13.44×12.36×16.50 mm (Length×Width×Height)

Coaxial Cable: 50 millimeters

3-in-1 Cable: 50 mm

Antenna size: 80 mm

AUDIO VISUAL DELIVERY

Operating Frequency:

5.170-5.250 GHz

5.725-5.850 GHz

The operating frequency differs depending on the region. Consult local regulations.

Transmitter Power (EIRP):

5.1 GHz: <23 dBm (CE)

5.8 GHz:

<30 dBm (FCC)

<14 dBm (CE)

<30 dBm (SRRC)

Minimal Delay:

DJI Goggles 3 (Racing Mode): 20 ms at 1080p/100fps

DJI Goggles N3 (Race Mode): 24 ms at 1080p/100fps

DJI Goggles 2 / Goggles Integra: Under 35 ms at 1080p/100fps

Latency data indicates the lowest latency measured in open settings.

Maximum Range for Video Transmission:

DJI Goggles 3 / DJI Goggles N3:

FCC: 10 kilometers

CE: 6 kilometers

SRRC: 6 kilometers

Assessed in clear outdoor settings. The real range fluctuates depending on flight endurance.

Live View Resolution: 1080p at 30/50/60/100fps

Communication Bandwidth: Up to 60 MHz

Antenna: 1 antenna, 1 transmit, 1 receive

Channels:

Support for Auto Mode and Manual Mode

Utilizing DJI Goggles 3 or DJI Goggles N3:

60 MHz: one channel

40 MHz: un canal

20 MHz: three channels

10 MHz: three channels

Utilizing DJI Goggles 2 or Goggles Integra:

40 MHz: un canal

20 MHz: three channels

10 MHz: tres canales

Channel Details:

FCC/SRRC/CE:

60 MHz / 40 MHz:

Channel 1: 5794.5 MHz

20 MHz / 10 MHz:

Channel 1: 5768.5 megahertz

Channel 2: 5789.5 megahertz

Channel 3: 5814.5 MHz

PHOTOGRAPHY DEVICE

Image Sensor: 1/2-inch CMOS Imaging Sensor

Lens:

Field of view: 117.6°

Focal Length Equivalent: 14 mm

Aperture: f/2.8

Concentration: 0.6 m to ∞

ISO Range:

100-6400 (Automático)

100-12800 (Manual Mode)

Video Clarity:

4K (4:3): 3840×2880@30/50/60fps

4K (16:9): 3840×2160@30/50/60 frames per second

1080p (4:3): 1440×1080@30/50/60/100/120fps

1080p (16:9): 1920×1080@30/50/60/100/120fps

Video Format: MP4

Maximum Video Bitrate: 100 Mbps

Color Mode: Standard Mode

Ángulo de visión de la cámara:

Criterion

Broad Perspective

EIS (Electronic Image Stabilization):

RockSteady 3.0 and above

Stabilization feature disabled (compatible with Gyroflow)

When RockSteady is activated, only the regular shooting angle is allowed.

EQUIPMENT

Input Voltage: 3.7-13.2 volts

Functioning Temperature: -10°C to 40°C

STORAGE

Integrated Storage: 23 GB

Compatible SD Cards: Not compatible

CONFORMITY

Compatible Flight Controller System: Betaflight 4.3.0 and above

Compatible DJI Goggles and Remote Controllers:

DJI Goggles 3 alongside DJI FPV Remote Controller 3

DJI Goggles N3 with DJI FPV Remote Controller 3

DJI Goggles 2 / Goggles Integra alongside DJI FPV Remote Controller 2

The flight control firmware needs to be compatible with the SBUS protocol to operate the DJI FPV Remote Controller.

DJI O4 Air Unit DEVICE

Weight: Approximately. 0.75 grams

Length: 80 millimeters

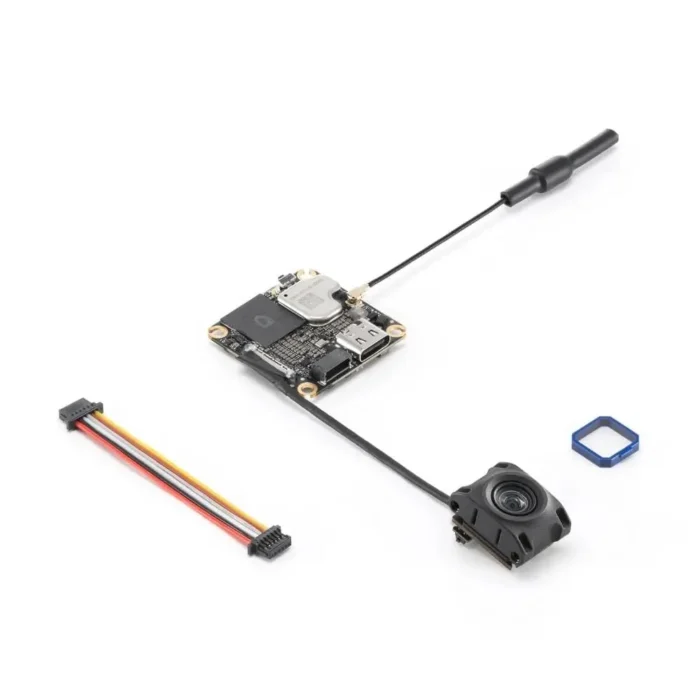

Package Contains:

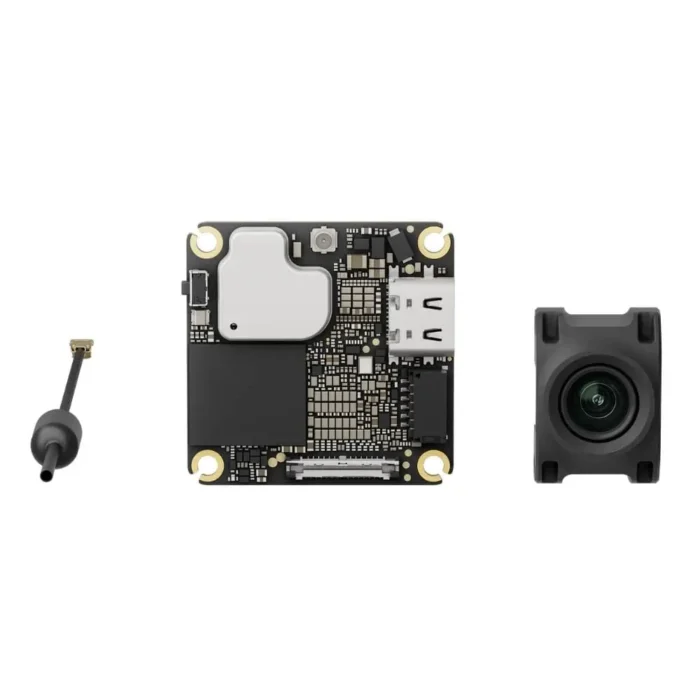

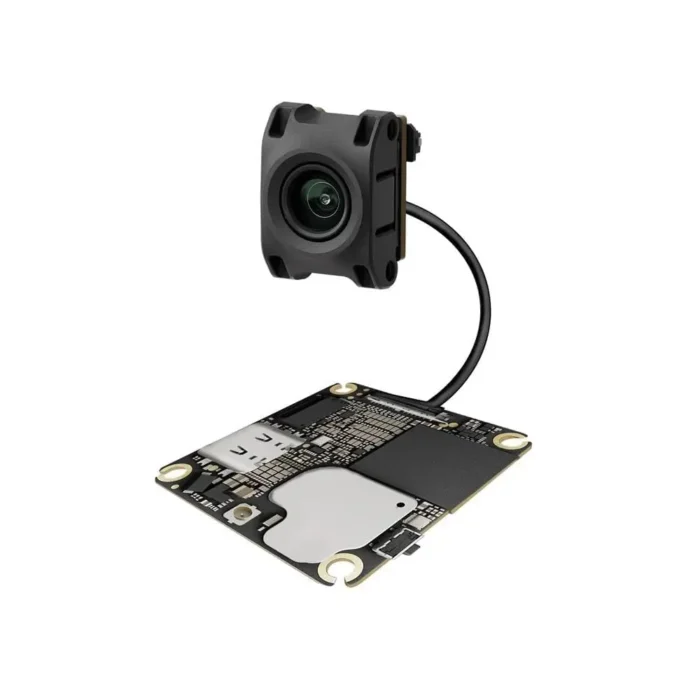

1 x DJI O4 Air Unit Camera Module

1 x DJI O4 Air Unit Transmission Device

2 x DJI O4 Air Unit Aerial Antenna

1 x DJI O4 Air Unit 3-in-1 Wire
