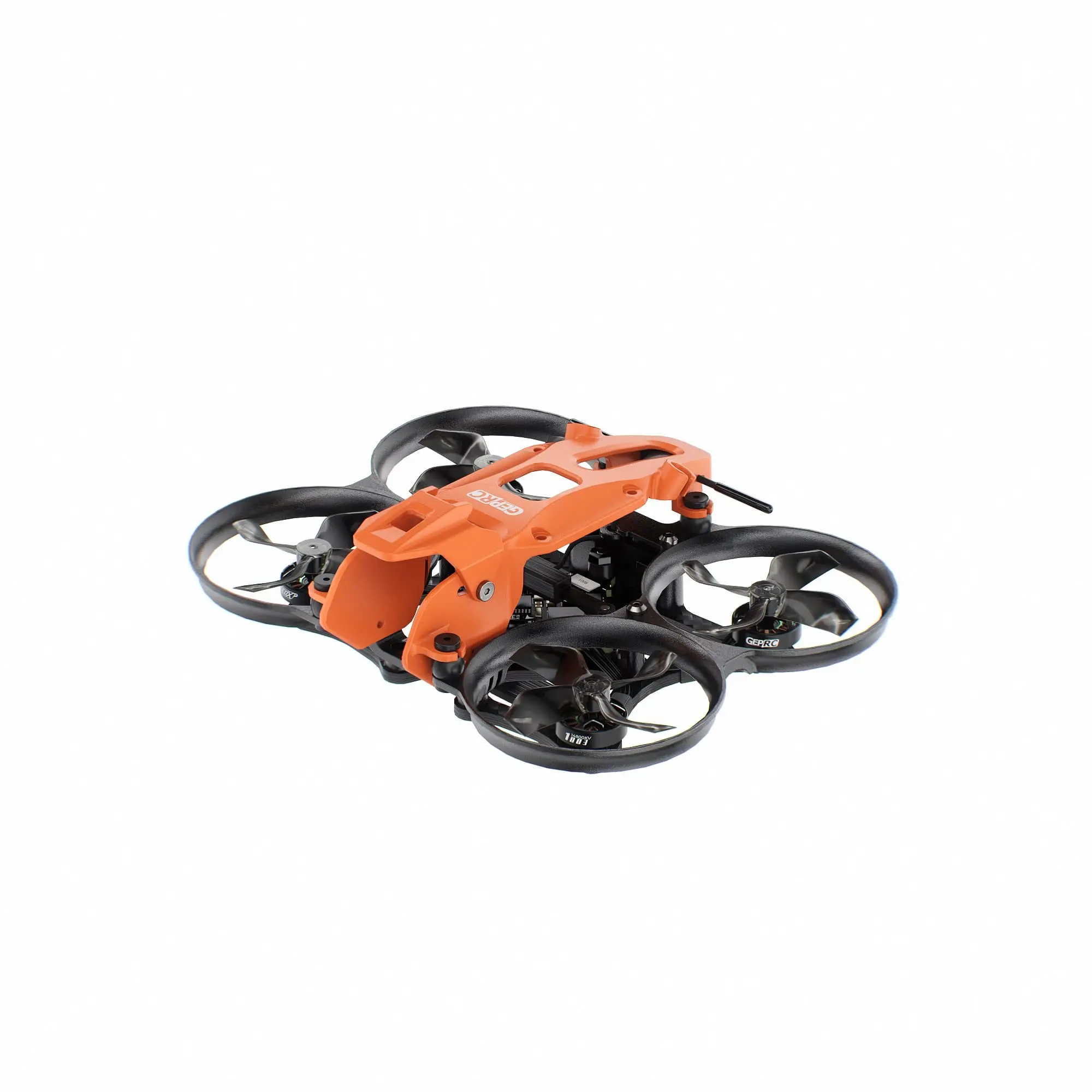

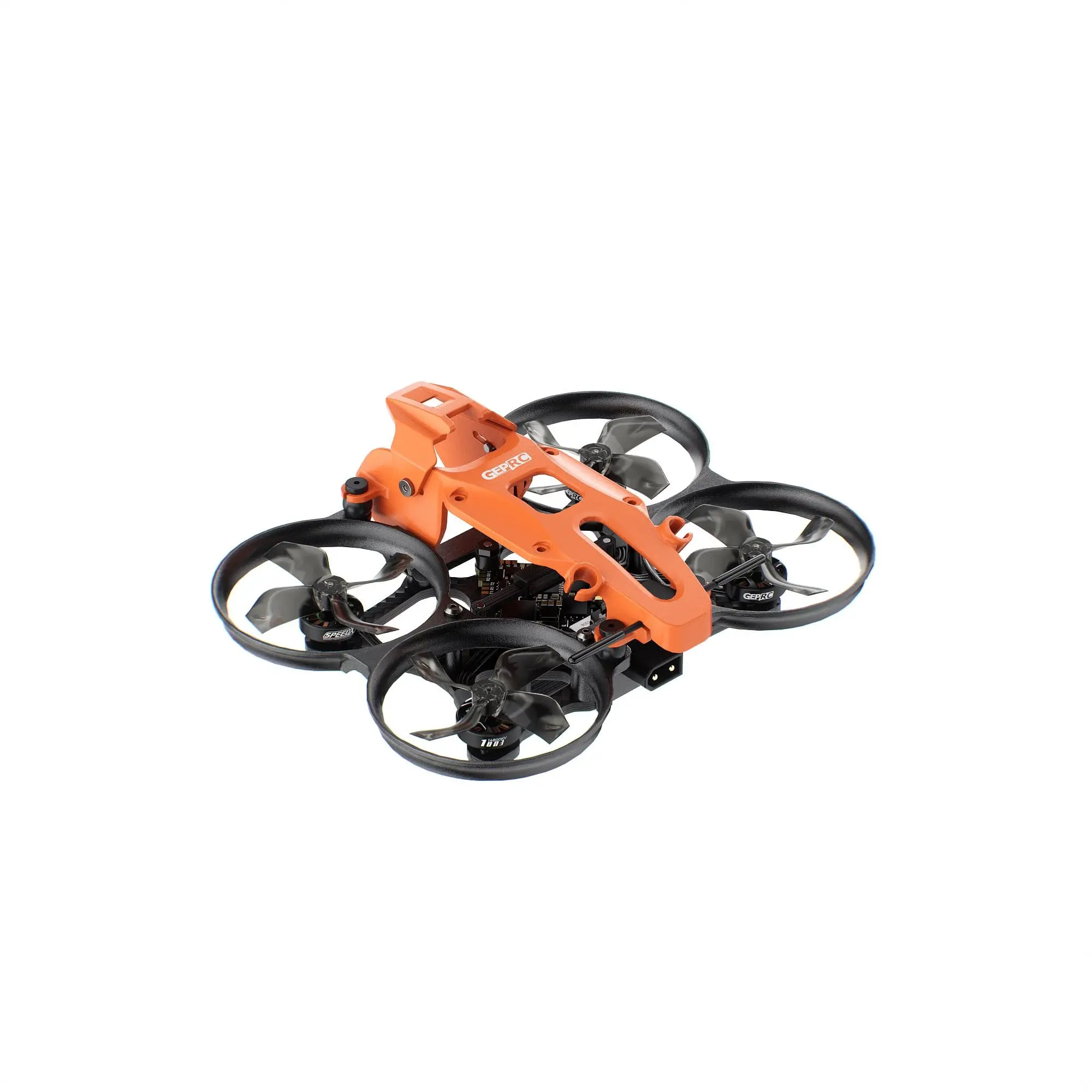

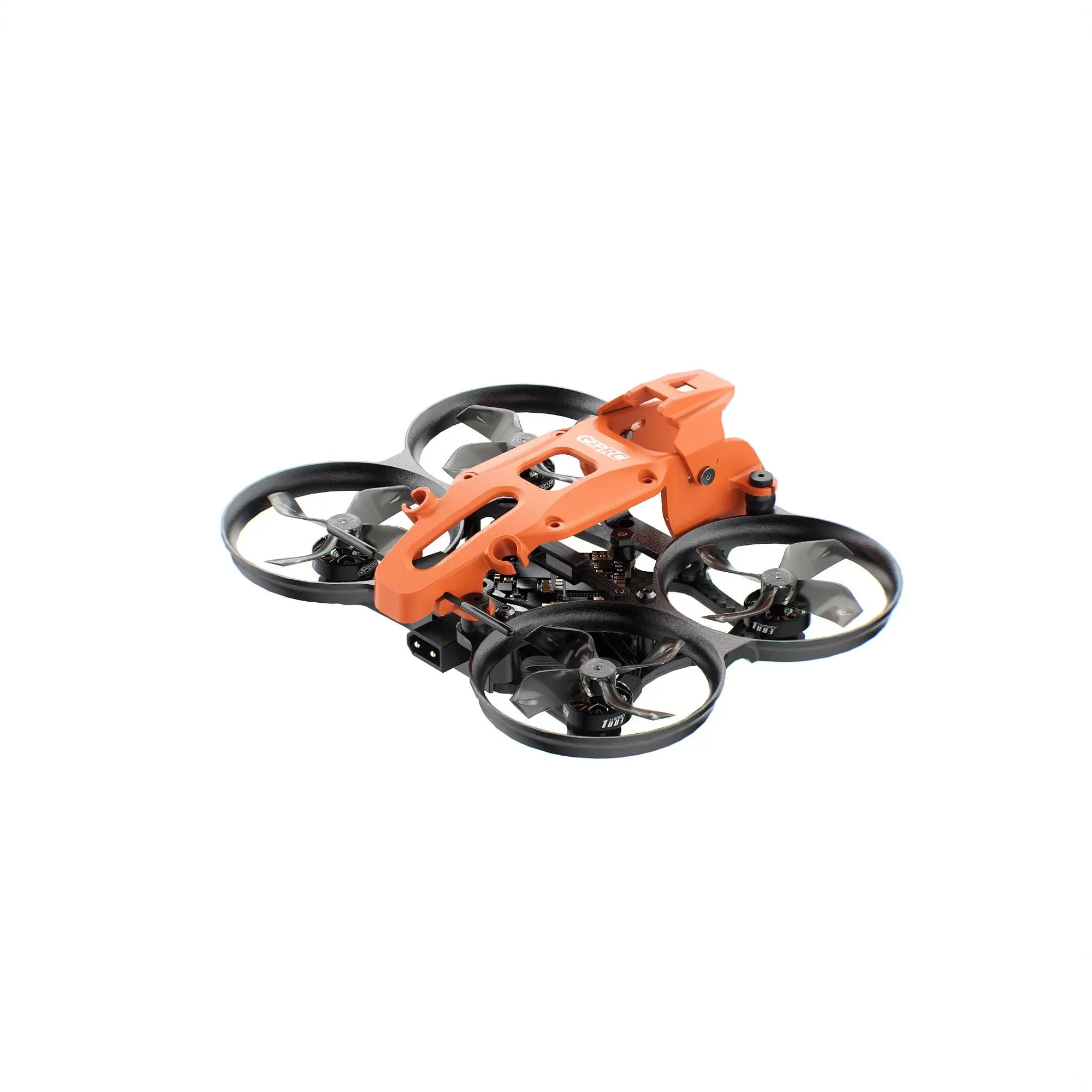

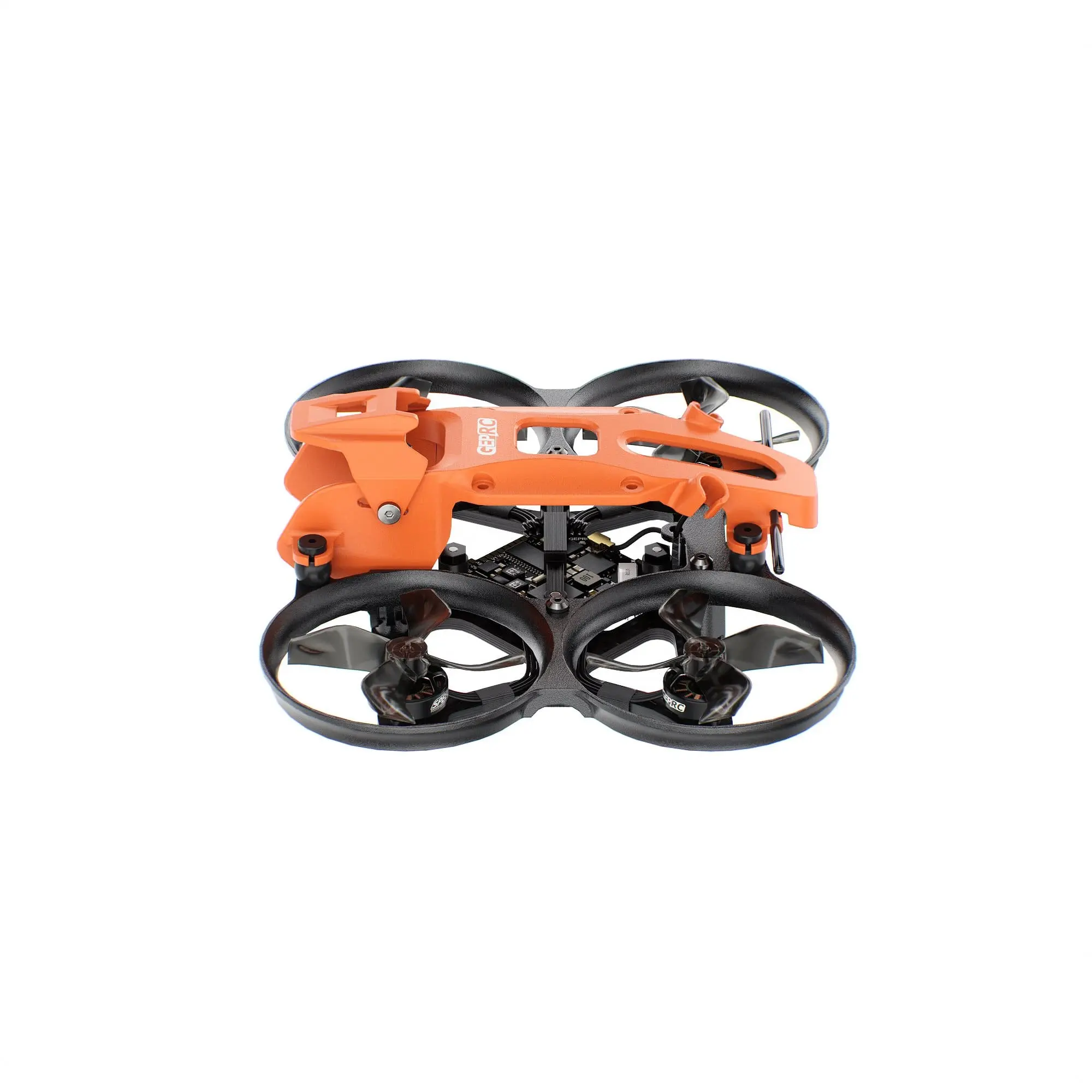

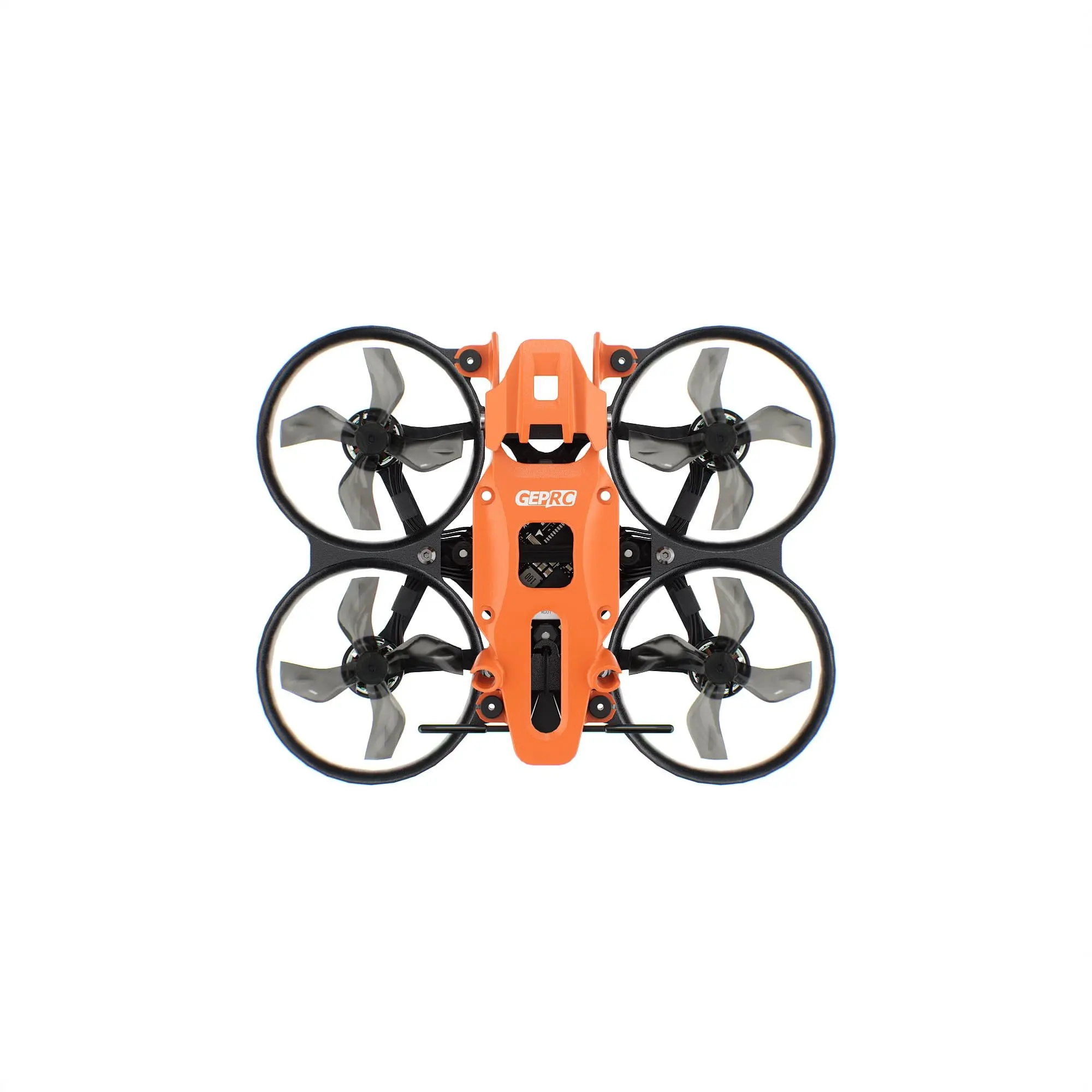

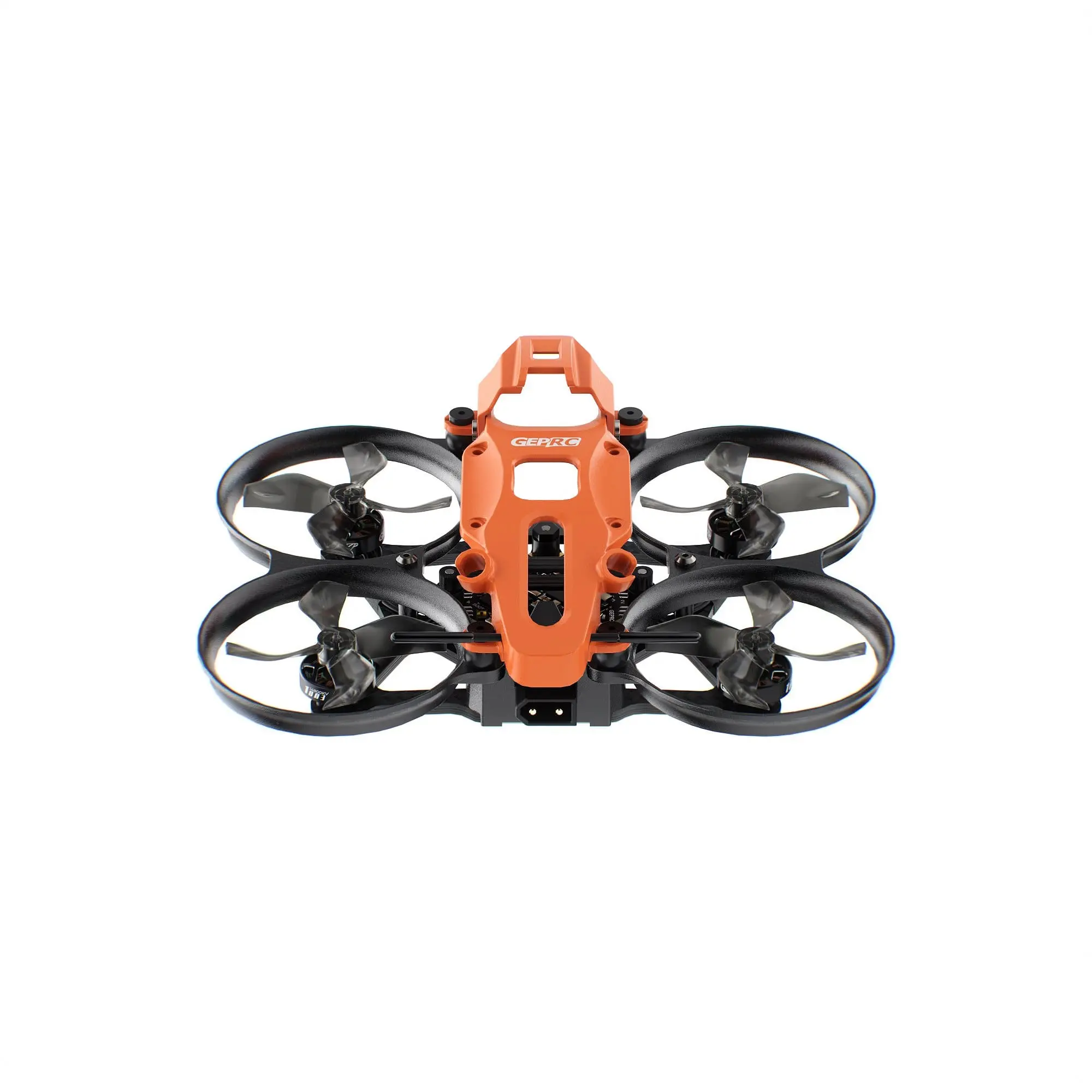

GEPRC DarkStar16 WTFPV TinyWhoop

GEPRC DarkStar16 WTFPV TinyWhoop

Summary

The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.

Featuring a 1.6-inch frame and the DJI O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.

The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.

The Darkstar16 offers a high-performance, creative flight experience.

Feature

1. The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.
2. Quick-release design lets you detach the VTX module by removing just 6 screws.
3. Equipped with the DJI O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.
4. Lightweight molding strikes a balance between durability and performance.
5. The compact 1.6-inch frame offers portability for efficient filming.
6. The fixed XT30 power connector ensures simple on/off operation.

Specifications

• Model: GEPRC DarkStar16 O4 Pro WTFPV
• Frame: GEP-DS16
• Wheelbase: 91mm
• FC System: TAKER F411-12A-E 1-2S AIO
• MCU: STM32F411CEU6
• Gyro: ICM42688-P
• OSD: Betaflight OSD w/AT7456E chip
• ESC: Bluejay 8Bit 12A
• VTX: /
• Camera: /
• Antenna: 5.8G UFL antenna
• Motor: SPEEDX2 1003 14800KV
• Propeller: Gemfan1636-4
• GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g
• Receiver: PNP / ELRS2.4G
• Recommended Battery: LiHV 2S 530mAh
• Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

Includes

1 x GEPRC DarkStar16 O4 Pro WTFPV

1 x Darkstar16 top plate (grey)

1 x Darkstar16 camera protector (grey)

1 x Darkstar16 protective frame (black)

1 x Gemfan1636-4 (2CW+2CCW)

1 x Plum screwdriver

1 x Spare screw pack

1 x Keychain
