iFLIGHT Specter 7 O4 6S HD TBS Diversity NANO RX

SPEC7ER is a high-performance FPV drone by 2RAW and iFlight.

Equipped with premium components and an innovative design that emphasizes durability, aerodynamics, and easy maintenance.

Shell Quick-release

Access electronics within one click

Premium Electronics Package

The Specter is equipped with advanced, high-end electronics, featuring a full-size GPS for rapid GPS lock and the 2RAW H7 Thunder flight controller, which minimizes electrical noise to deliver exceptionally smooth flight performance.

Easy Maintenance

The Specter features a unique shell quick-release system that allows for easy one-click opening of the shell, providing full access to the internal electronics.

Reinforcement Structure

The Specter incorporates CNC aluminium parts in key areas such as arm ends, internal arm joints, and the GoPro mount. This design simplifies the complex truss structure, allowing for easy assembly while ensuring exceptional strength.

Truss Design

The Specter features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.

Aero Shell

2RAW’s signature aero shell protects the internal electronics from debris and dirt, drastically improving the drone’s aerodynamic performance in the sky. It also features integrated LEDs, allowing users to easily spot their drone in the air.

Unmatched FOV

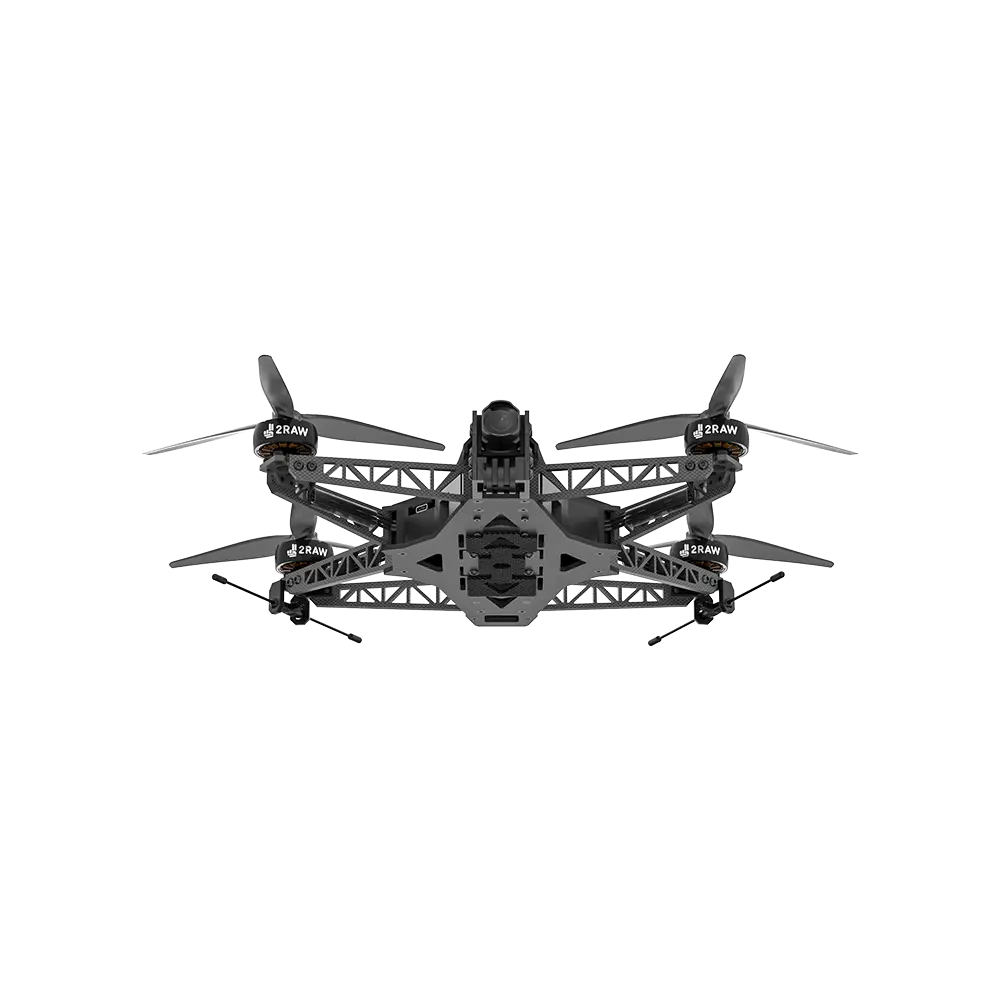

With a unique underslung GoPro mounting method, the Specter enables users to have no props in view from -45 to 45 degrees in both the DJI O4 feed and the GoPro feed.

Product Name: Specter 7 O4 6S HD

Geometry: Squashed X

FC: iFlight Thunder H7 Flight Controller

ESC: BLITZ E55 4-IN-1 ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 306mm wheelbase

Motor: XING2 2806.5 1400KV motors

Prop: GEMFAN 7043*3 propellers

Dimensions (L×W×H): 232*201*62mm

Weight: 824±10g (Without Battery)

Takeoff Weight: Approx. 1309±10g（incl. 6S 3300mAh）

Max Speed: 150km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 24-25 min with 6S Lipo 5600mAh battery No Load

Operating Temperature Range: -20℃—40℃

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x Specter 7 6S HD BNF

1 x Screw Bag

1 x Battery Strap

1 x Battery pads

All iFlight BNFs are tested before shipment to guarantee the highest quality.
