iFlight BLITZ Mini F7 V1.1 Flight Controller
239.99 AED
Out of stock
Description
iFlight BLITZ Mini F7 V1.1 Flight Controller
Features :
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
iFlight BLITZ Mini F7 V1.1 Flight Controller Specifications :
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g
Wiring Suggestion :
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

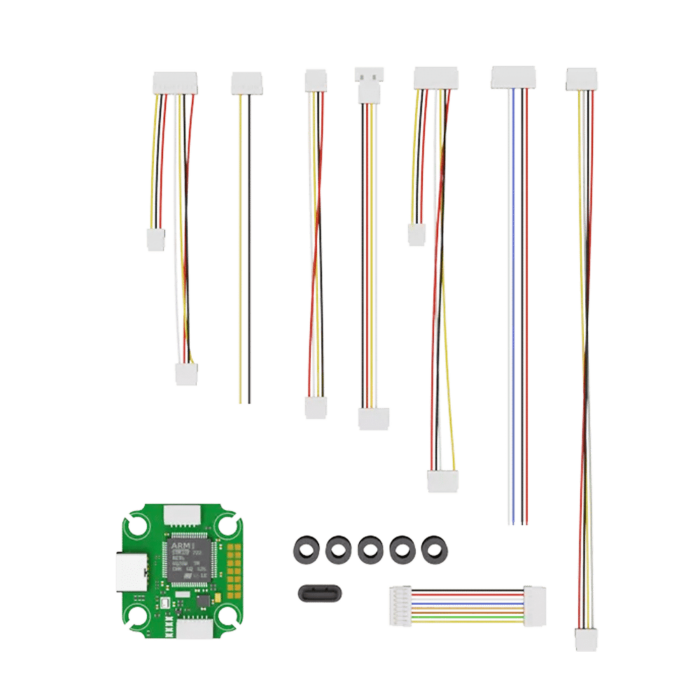

Packing List :
1 x BLITZ Mini F7 V1.1 Flight Controller
1 x FC connectors
1 x Silicon grommets
For More Options Click
Additional information
| Weight | 0.050 kg |
|---|
Brand
Brand
iFlight
