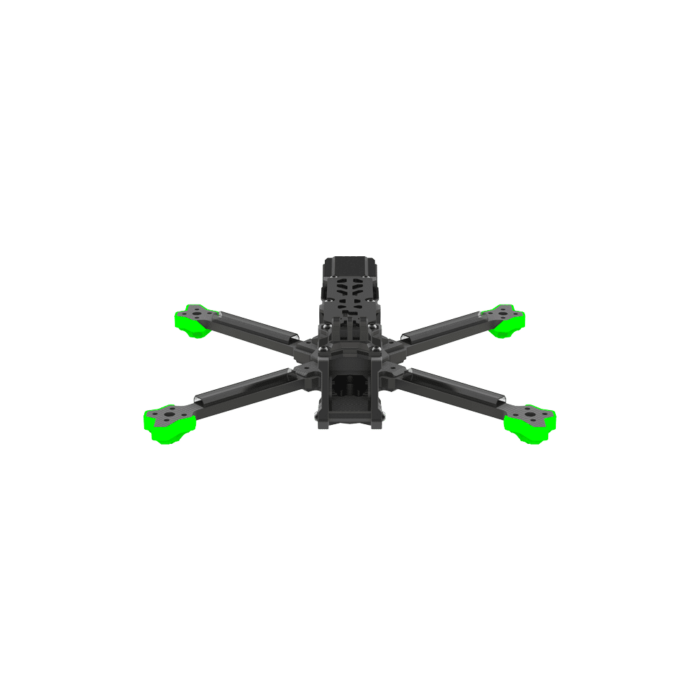

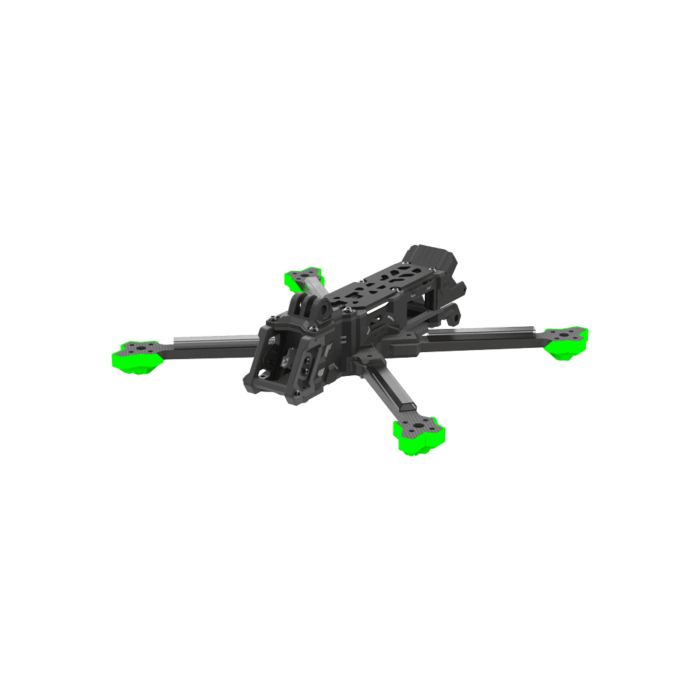

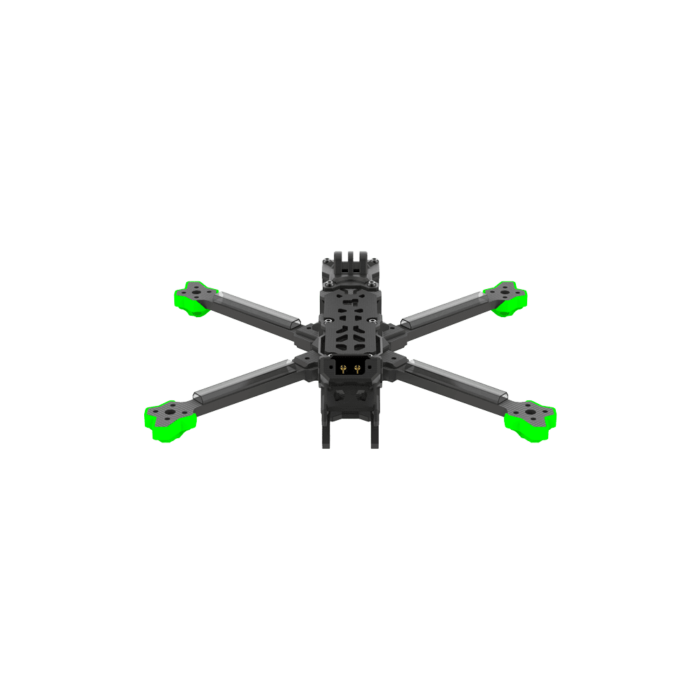

iFlight Nazgul Evoque F6X V2 Frame Kit

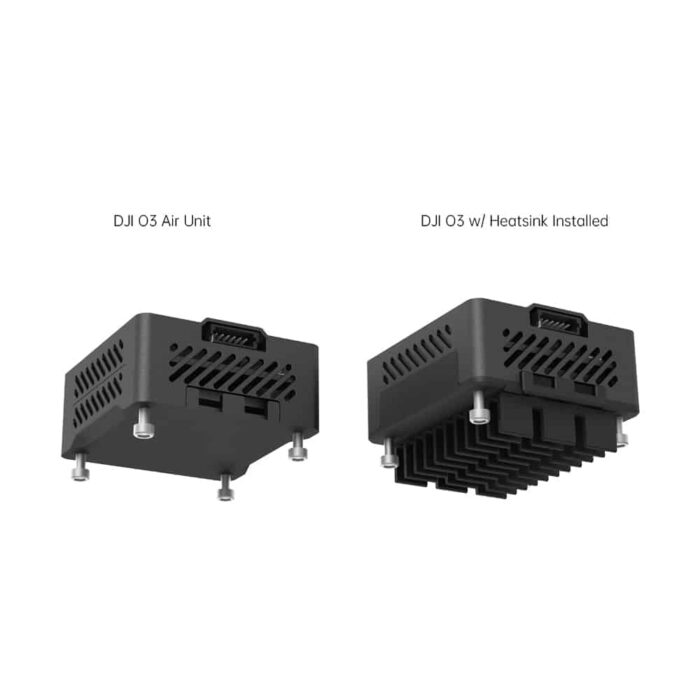

If you want to upgrade your Nazgul Evoque F6 V1 with the DJI O3 Air Unit read this:

– The FC (Flight Controller) to O3 VTX connector is different than the older Caddx Vista/Polar plug. You’ll need to DIY.

– The RX (Receiver) position changed. V1 antenna length is 75mm, V2 is 220mm. You’ll need to DIY.

– The XT60 plug was changed, you’ll need to de-solder the V1 plug and install the V2 plug. Included in the frame kit.

– If you’re going from F6X V1 to F6X V2 all motor wires will have the same length.

– If you’re going from F6X V1 to F6D V2 the back motor wires need to be extended , since you change frame geometry .

– The Antenna TPU in the back comes in 2 Versions; One for the original single DJI VTX antenna, or one for the dual antenna setup. The kit includes a dual antenna TPU. 2x 5.8G LHCP antennas need to be installed .

– The Nazgul Evoque F6 V2 BNF comes with a new Anti Spark filter pre-installed. Please select the option to purchase separately; it’s not included in the frame kit .
