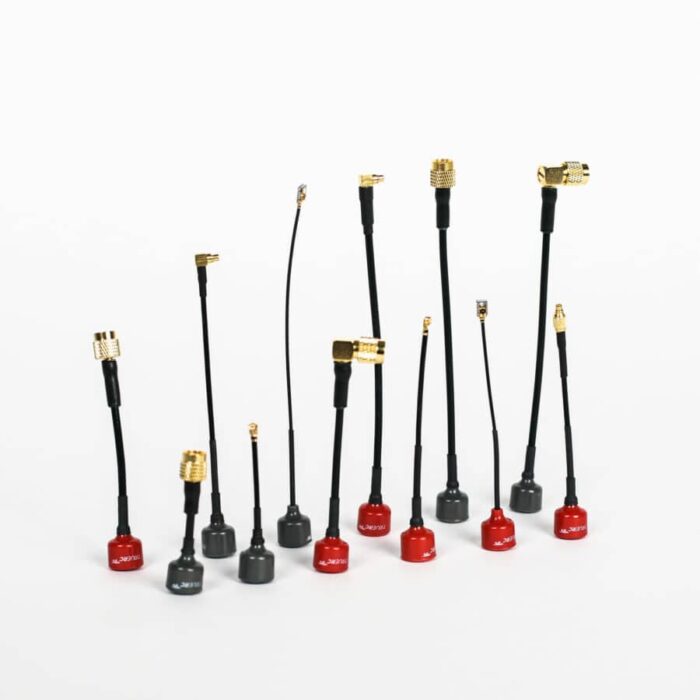

TrueRC Singularity 5.8 HD Antenna

TrueRC Singularity 5.8 HD Antenna

The singularity 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still. It is the smallest and lightest 5.8GHz CP antenna ever made.



Specs:

• Gain: 1.9dbic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: -15 to -30dB (1.9%)/
• Bandwidth: 5.6GHz-6.0GHz
• Radiation Efficiency: 99%
• SWR: <=1.5:1
• Weight: 1.03g to 3.55g depending on configuration
• Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
• Length: Vary with cable option
• Cable: RG405, RG178, 1.13mm
• Connector: True-SMA/90, MMCX/90, U.FL



Useful print!

• Rotor Riot HD1 mount
• iFlight Nazgul XL5V5 mount
• Lumenier QAV-S Mini Antenna Mount
• Carnage/Venom mount
• AlphaRC Fi-115 mount
