iFlight BLITZ Mini E55 4-IN-1 ESC
314.99 AED
Out of stock
Description

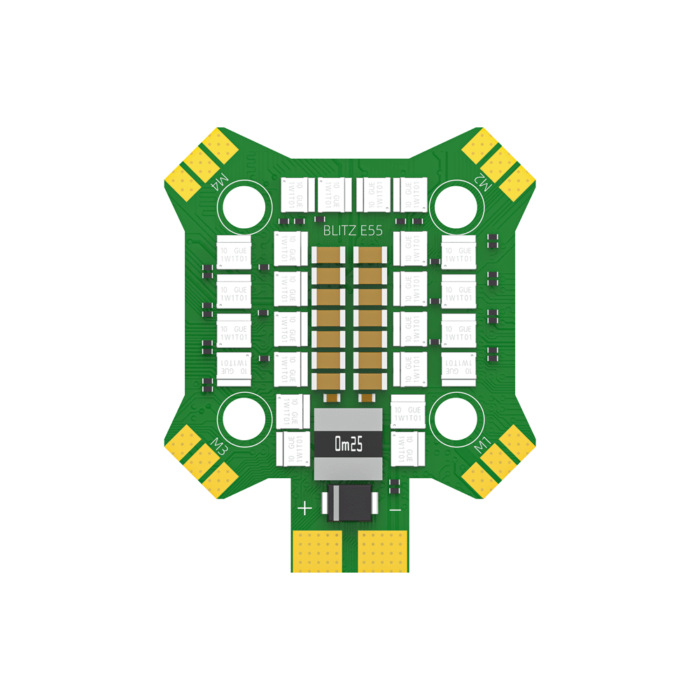

iFlight BLITZ Mini E55 4-IN-1 ESC
iFlight BLITZ Mini E55 4-IN-1 ESC Description :
The next generation of ESCs from iFlight has arrived. Currently being used in their BNF quads such as the Nazgul F5/F6 Series BNF. These new 55 Amp BLHeli 32 BLITZ Mini 4-in-1 ESCs can handle even the most amp-hungry motors.
Changelog
BLITZ Mini E55 4-IN–1 ESC V1.3 – Metal Mosfets (Jan-28,2023)
Specifications :
Product Name: BLITZ Mini E55 4-IN-1 ESC
Input Voltage: 2-6S
Max. Continuous Current: 55A
Max. Burst Current: 60A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G071_01 32.9
Mounting Dimensions: 20 x20 mm/Φ4mm
Dimensions: 35x42mm
Weight: 11.3g
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc

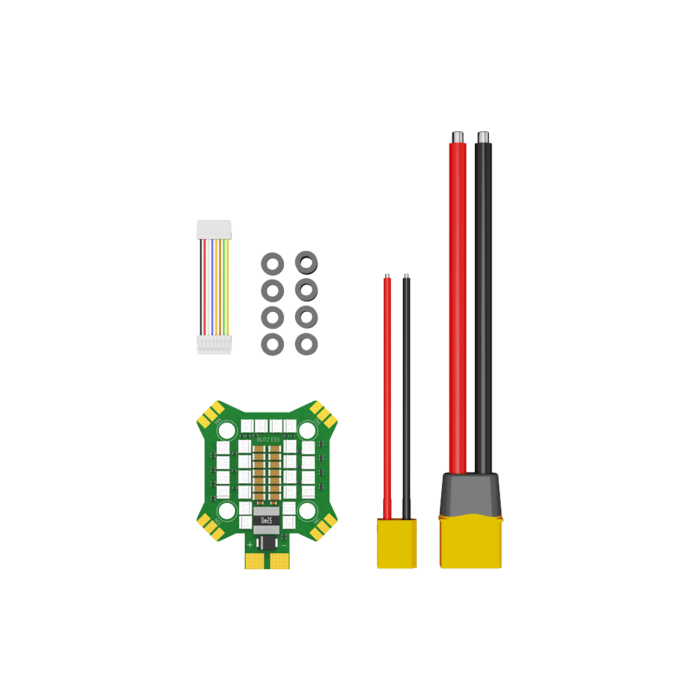

Packing List :
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
Note :
If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC, and then install the ESC.
