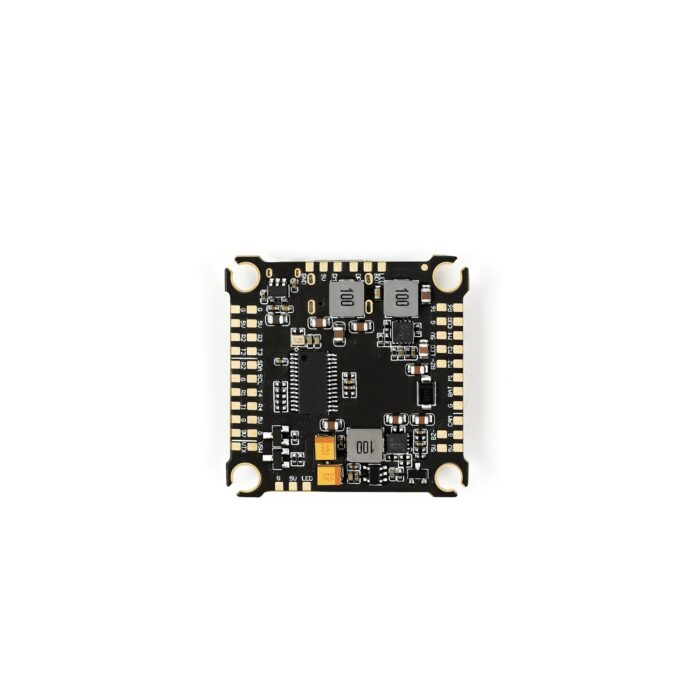

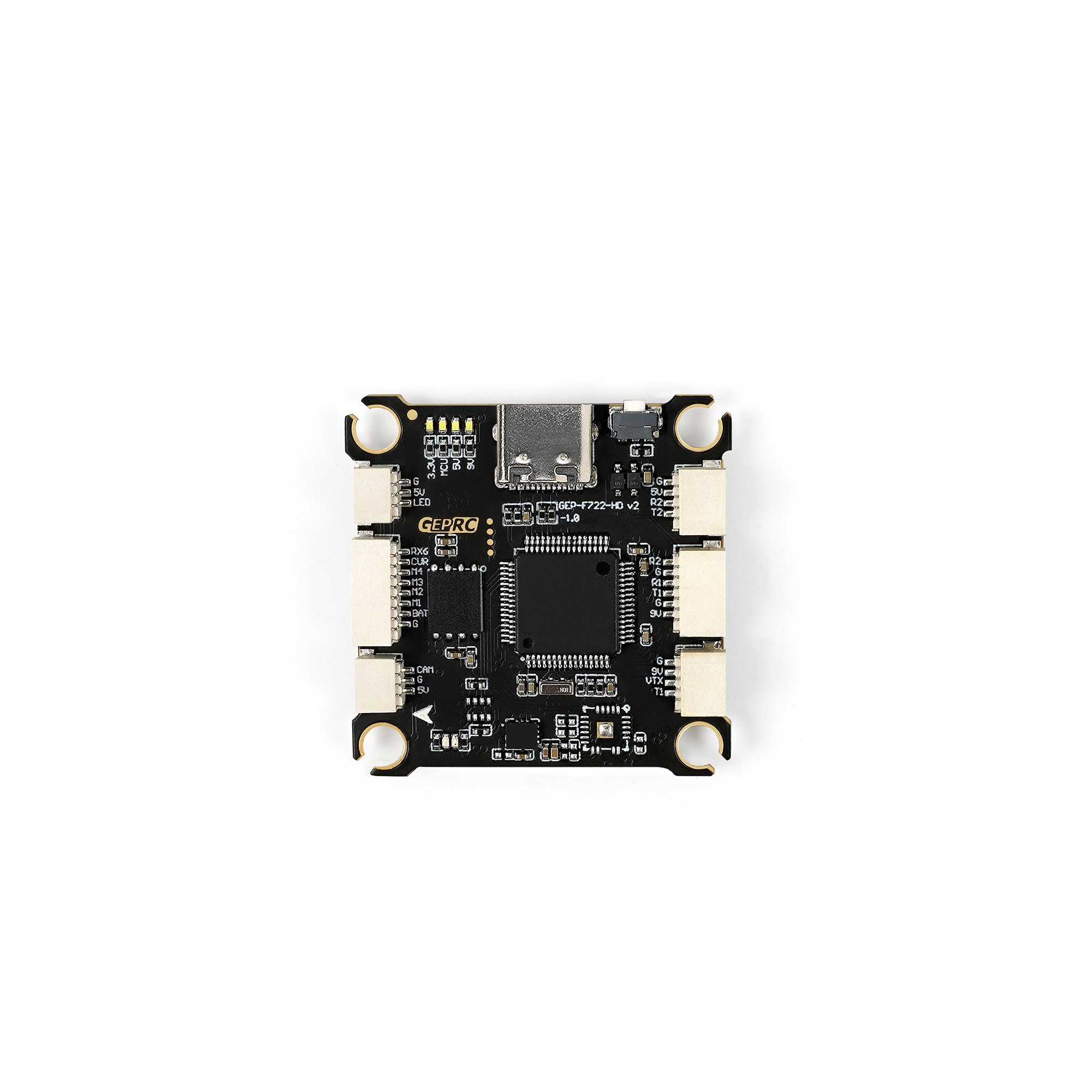

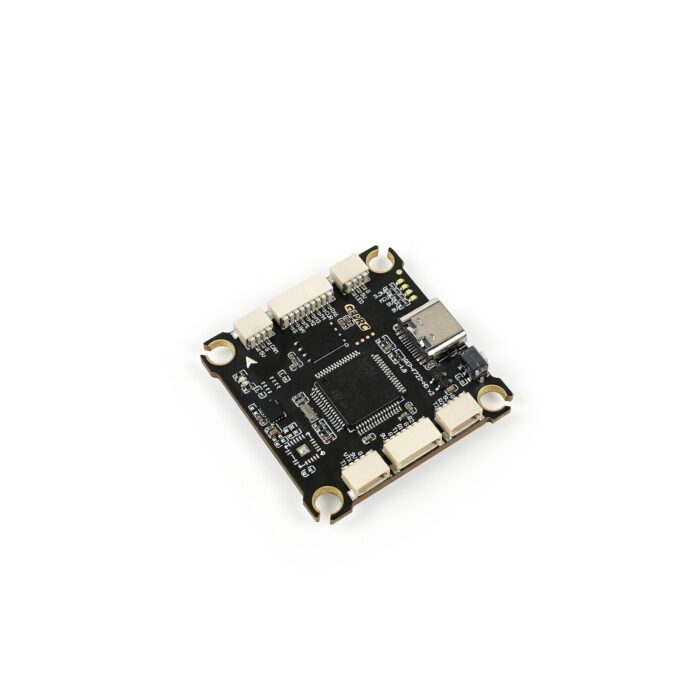

GEPRC F722 HD V2 Flight Controller

GEPRC F722 HD V2 Flight Controller

Specifications

• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugging into DJI Air Unit
• Black Box: 16M onboard
• Baro: Built-in Barometer
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A,9V@2.5A dual BEC
• Firmware Target: GEPRCF722
• Size: 36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage: 3-6S LiPo
• UART: 5
• Power Filter: Integrated LC filter
• Weight: 8.1g
