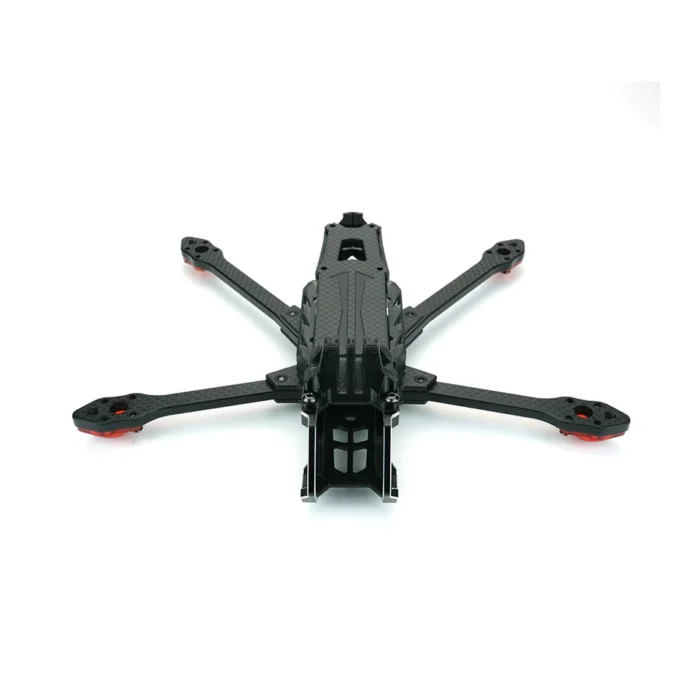

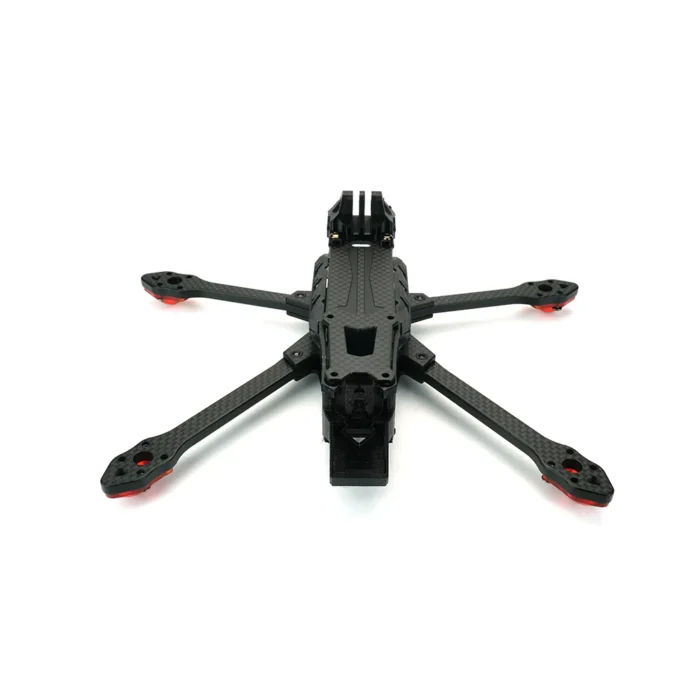

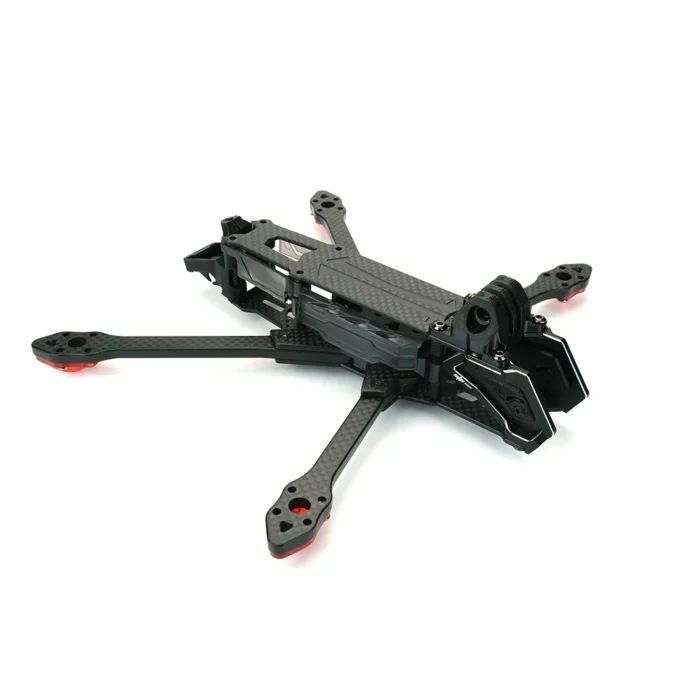

RushFPV Armor 5D O3 Frame

RushFPV Armor 5D O3 Frame

DESCRIBE :

• Frame Model: Armor5″ 03 (5D/5X)
• Frame Wheelbase: 220mm (5D) /215 (5X)
• Stack Installation Size: 30.5mm *30.5mm/20mm *20mm
• VTX: 20mm*20mm (03 Air Unit)
• Camera Specifications: 19mm/20mm
• Motor Specifications: 16mm*16mm
• Fit Blade Specifications: 4.9-5.1″
• Roof Thickness: 2.5mm
• Baseplate Thickness: 2mm
• Center Plate Thickness: 3mm
• Dimension: 231mm*202mm*53mm(5D)/202mm*199mm*53mm (5X)
• Weight: 138g(5D)/136g (5X)

PRODUCT FEATURES :

• Metal CC camera mount
• Ultra-light injection molded colorful protective case
• Air duct design, improve the heat dissipation effect
• Convenient parameter adjustment side panel, one-key removal
• Innovative TPU shock absorption structure
• Multi-layer fuel injection+ chamfering design
• Front-out/rear-out power cables to meet a variety of battery placement needs

PACKING LIST :
Frame Bag:
• 2.5mm Roof (5D) *1 / 2mm Roof (5X)
• 2mm Bottom Plate (5D) *1 / 2.5mm Bottom Plate (5X)
• 5mm Arm*4
• 3mm Center Plate*1
• 2.5mm Arm Limit Plate*1
Screw Pack:
• M3*28 Aluminum Column*8
OM5*20 Bolt*1
• M5 Dome Head Nut*1
• M3*28 Pan Head Screws*4
• M2 Nut*4
• M2*18 Pan Head Black Nickel Plated Screws*4
© M3*8 Pan Head Black Nickel Plated Screws*4
• M3*6 Pan Head Black Nickel Plated Screws*10
• M3*10 Pan Head Black Nickel Plated Screws*24
• M1.6*8 Flat Head Black Nickel Plated Screw*4
3D Printing Accessories:
• VTX Antenna GPS915 Mount*1
• Arm Limiter Plate Stabilizer*1
• Universal GoPro Mount*1
• Camera Mount*2
• Buzzer Printout*1
• Receiver Printout*1
Iniection Accessoriess:
• Stack Protection Side Plate (Transparent Black) *2
• Stack Protection Side Plate (Yellow) *2
• VTX Protection Side Plate (Transparent Black) *2
• VTX Protection Side Plate (Yellow) *2
CNC Accessories:
• Camera Bracket*2
Other Accessories:
• 20mm *230mm Battery Tie*1
• Battery Anti-skid Pad*1
